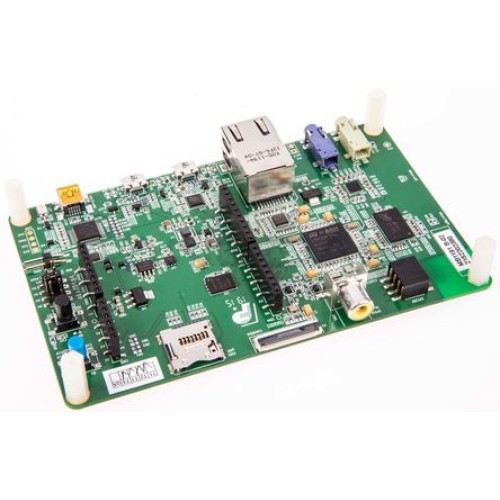

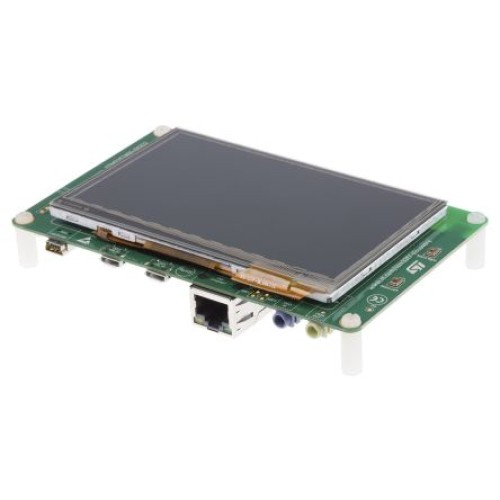

Disco Discovery STM32F746NG Cortex M7 + touch screen capacitive 4.3

The module allows to implement projects based on the popular 32-bit microcontroller families STM32. The Board also contains additional items: LCD touchscreen 4,3", buttons, and Ethernet port. To create a software to facilitate libraries and many examples are available on the website of the company ST.

Specification

• The microcontroller STM32F746NGH6:
  • Core: Cortex M-7
  • Flash memory: 1 MB
  • RAM: 340 KB SRAM
  • Clock frequency: up to 216 MHz
  • Housing: BGA216
• The debugger ST-Link/V2, located on the Board
• Color LCD screen
  • Screen: 4,3 "
  • Screen resolution: 480 x 272 px
  • Touch panel: capacitive
• 5 options power supply module:
  • ST-LINK/V2-1
  • Connector USB Full Speed
  • USB connector High Speed
  • The VIN of the Arduino connector
  • The external connector 5 V
• On Board there are also:
  • Output and audio input
  • The camera connector
  • Speaker output stereo
  • Two microphones ST MEMS
  • Two buttons
  • Slot microSD
  • MicroUSB OTG HS
  • MicroUSB OTG FS
  • Connector Ethernet IEEE 802.3-2002
  • Flash memory: 128 MB Quad SPI
  • Memory SDRAM: 128 MB
  • The Connectors Of The Arduino Uno
