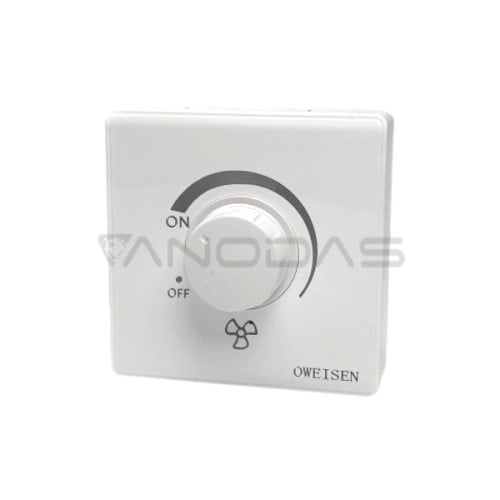

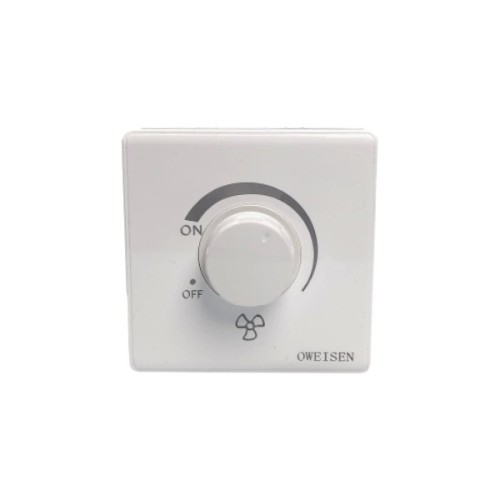

Dimmer for LED strips - DIMMER - 12-24V DC 30A - manual controller

Product Code: ABC-20824
Availability: Vilnius Store In Stock
Kaunas Store Out of Stock
Central Warehouse Out of Stock
9.60€
Ex Tax: 7.93€

Qty

The LED strip dimmer is a universal controller for single-color LED strips.

The dimmer allows you to turn the lighting on and off and change the brightness level of the LED strip.

The dimmer is suitable for any LED strip, as well as other current devices powered by constant DC voltage, such as brush motors, light bulbs and others.

In a DC dimmer, control is performed using pulse PWM technology, so power losses are small.

Adjustment is made using a manual potentiometer in the range from 0 to 100%.

Technical data
  • Power supply: 5-24V DC
  • Adjustment range: 0 - 100%
  • Maximum load: 30A
  • Operating temperature: -20 ~ 60ºC
  • Power: 360W (for 12V) 720W (for 24V)
  • Output signal: PWM control
  • Housing dimensions: 66 x 62 x 20 mm
  • Material: metal
  • Weight: 115g
