Digital temperature and humidity sensor - SHT45 - STEMMA QT/Qwiic - Adafruit 5665
Brand: Adafruit
Product Code: AN-22541
Availability: 4-6 business days
Planned delivery date after ordering: 2024-12-20
Product Code: AN-22541
Availability: 4-6 business days
Planned delivery date after ordering: 2024-12-20
Ex Tax: 19.17€

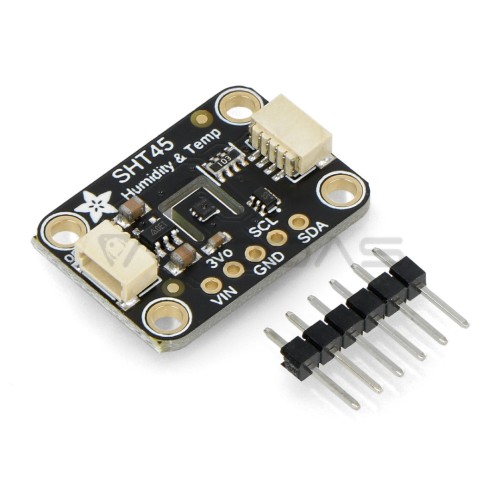

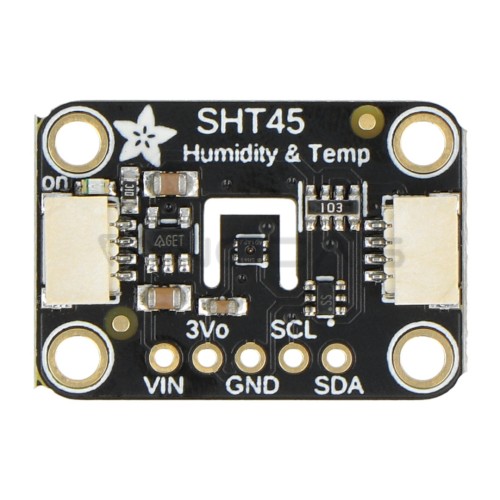

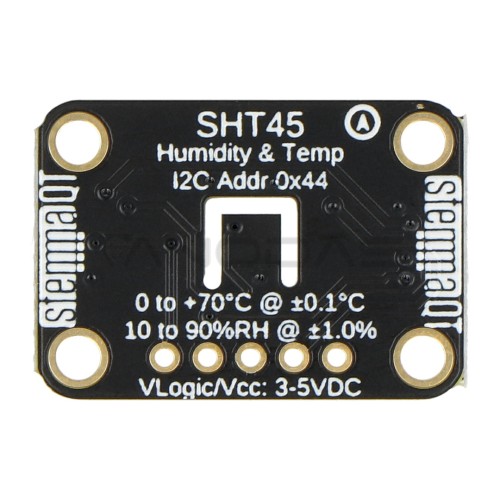

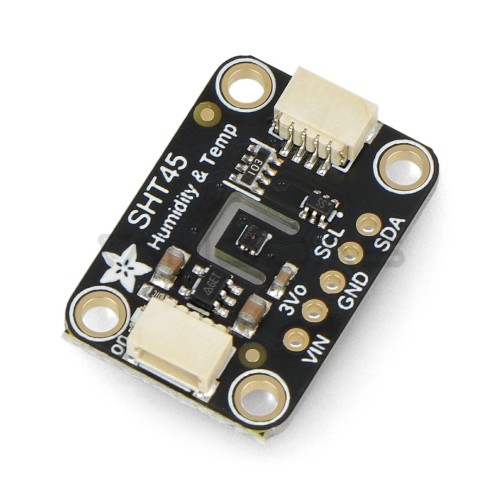

High precision, digital temperature and humidity sensor manufactured by Adafruit. It has a built-in Sensirion SHT45 system that measures temperature in the range from -40 °C to 125 °C with an accuracy of 0.1 °C and humidity measurement in the range from 0% to 100% RH with an accuracy of 1%. The supply voltage of the board is between 3 V and 5 V DC. The module uses the I2C interface to communicate with the main module. It has also been equipped with STEMMA QT / Qwiic connectors and leads in the form of soldering pads. The set includes a dedicated gold pin strip (pitch 2.54 mm), which should be soldered in the marked places.
Specification:
- Module: temperature and humidity measurement sensor
- Type: Digital
- Built-in chip: Sensirion SHT45
- Temperature measurement range: -40 °C to 125 °C
- Temperature measurement accuracy: +/- 0.1 °C
- Humidity measuring range: 0% to 100% RH
- Humidity measurement accuracy: +/- 1% RH
- Communication interface: I2C bus
- I2C interface address: 0x44
- Power supply: 3 V to 5 V DC
- Connectors: solder pads / STEMMA QT / Qwiic
- Fully functional in condensing conditions
- Electric heater, true NIST traceable
- JEDEC JESD47 qualification
- Sensor calibration certificate acc. according to ISO 17025
- Module dimensions: 25.5 x 17.7 x 4.8 mm
- Weight: 1.7 g
Set includes:
- Digital temperature and humidity sensor - SHT45 - STEMMA QT / Qwiic - 1 pcs
- Goldpin strip 1x6 - raster 2.54 mm - 1 pcs
