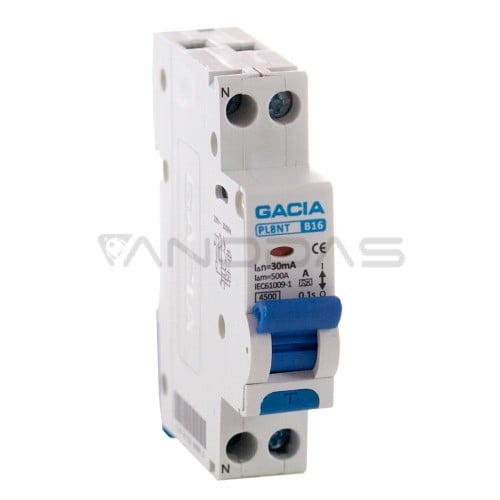

Differential circuit breaker with overcurrent element B16A, 30mA, 1P type A

Residual current circuit breaker with overcurrent element PLN8NT type A - dedicated to protect devices in the event of damage and flooding, protection against electric shock and has a short-circuit/overload protection function.

The PLN8NT type A residual current circuit breaker with an overcurrent element is also used in construction, industry, lighting systems and distribution systems as an on/off switch for circuits.

The PLN8NT type A residual current circuit breaker with overcurrent element is used in electrical circuits with the following parameters:
• powered by AC 50/60Hz
• rated voltage 230V
• alternating current up to 16A.
meets IEC/EN61009-1 standards

The product may only be installed by authorized persons. Disconnect the power supply before installation.

To improve safety of use, it is equipped with a clear activation indicator. Safe and easy mounting on TH35 rail using plastic clips.

The PLN8NT line residual current circuit breakers are equipped with a TEST button to check the correct internal operation of the device - the test should be performed every 30 days.

Electrical Features:

• rated current: 16A
• B characteristics
• rated residual current A: 30mA
• number of fields: 1P
• Rated switching capacity of residual current A: 500
• release time: 0.1s
• voltage surge resistance U imp: 6000V
• pollution degree: 2
• rated voltage: 230V
• insulation voltage: 500V
• current frequency Hz: 50/60

Mechanical features:

• • mechanical life: 4500
  • working position indicator: yes
  • protection level: IP 20
  • storage temperature: -30 / +70°C
  • operating temperature: -30 / +50°C
