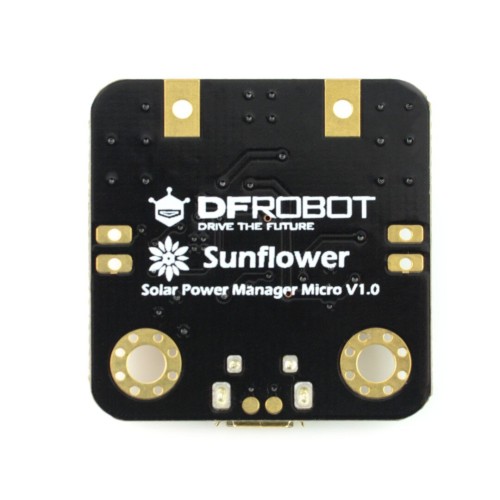

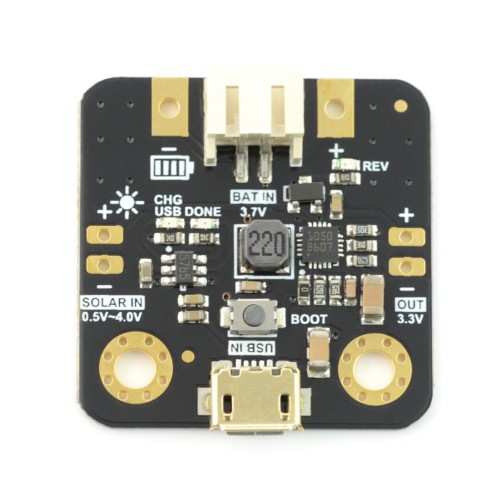

DFRobot Solar power module with 2 V / 160 mA solar cell

The module allows you to charge a 3.7 V Li-pol battery with the supplied mini solar cell or microUSB port and power the devices with 3.3 V. The kit includes a cable with JST plug to connect the battery and two double goldpin plugs and wires to solder the photovoltaic panel. All modules in this series are equipped with MPPT algorithm (maximum power point tracking), which greatly increases efficiency under changing conditions. The board is also equipped with a number of protections - against overload, over-discharge and reverse battery connection and against short circuit and overload on the 3.3 V output.

Specification:

• Power module:
• Control system: SPV1050
• Input voltage for panel: 0.5 V to 4 V
• Batteries supported: 3.7 V Li-pol
• Charging current: up to 100 mA
• Protection against battery overload: 4,2 V
• Protection against excessive discharge of the battery: 3,1 V
• Output voltage: 3,3 V
• Output current: 90 mA
• Idle current consumption: below 3 uA
• Security:
• Battery: against overcharging, discharging and reverse connection
• 3.3 V output: short-circuit proof, overload proof
• Operating temperature: from -40 ℃ to 85 ℃
• Dimensions: 30 x 30 mm


• Solar panel
• Nominal voltage: 2 V
• Nominal intensity: 160 mA
• Material: Silicon monocrystalline circuits
• Features:
• Waterproof
• Corrosion resistant
• Dimensions: 50 x 50 mm

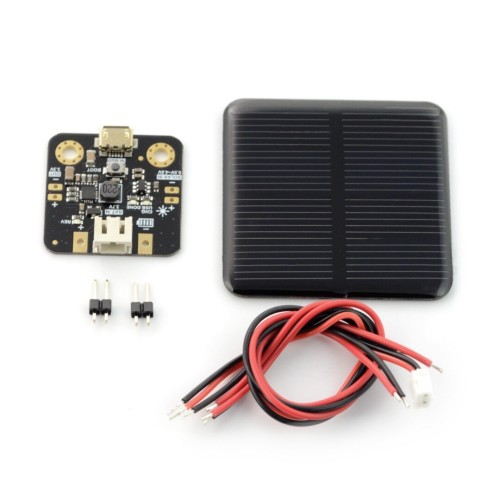

Set includes:

• Monocrystalline Silicon Solar Panel 2 V 160 mA 50 x 50mm x1
• Red Single Conductor Wire 15 cm 24 AWG x2
• Black Single Conductor Wire 15 cm 24 AWG x2
• PH2.0-2P Male Power Wire 15 cm x1
• XH2.54-2P Header x2


Documents:
Website of the manufacturer
Manual
