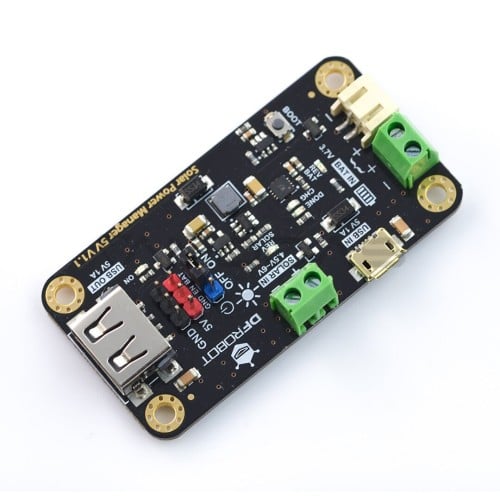

DFRobot Solar Power Manager - Solar energy management module - 5V

Solar Power Manager 5V is a small power and high-efficiency solar power management module designed for 5V solar panel.
It features as MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel. The module can provide up to 900mA charging current to 3.7V Li battery with USB charger or solar panel. The ON/OFF controllable DC-DC converters with 5V 1A output satisfies the needs of various solar power projects and low-power applications. The module also employs various protection functions for battery, solar panel and output, which greatly improves the stability and safety of your solar projects.

Specification:

• Solar Input Voltage (SOLAR IN): 4.5V~6V
• Battery Input (BAT IN): 3.7V Single cell Li-polymer/Li-ion Battery
• Charge Current(USB/SOLAR IN): 900mA Max trickle charging, constant current, constant voltage three phases charging
• Charging Cutoff Voltage (USB/SOLAR IN): 4.2V±1%
• Regulated Power Supply: 5V 1A
• Regulated Power Supply Efficiency (3.7V BAT IN): 86%@50%Load
• USB/Solar Charge Efficiency: 73%@3.7V 900mA BAT IN
• Quiescent Current: <1 mA
• Operation Temperature: -40℃～85℃
• Dimension: 33.0mm x 63.0mm

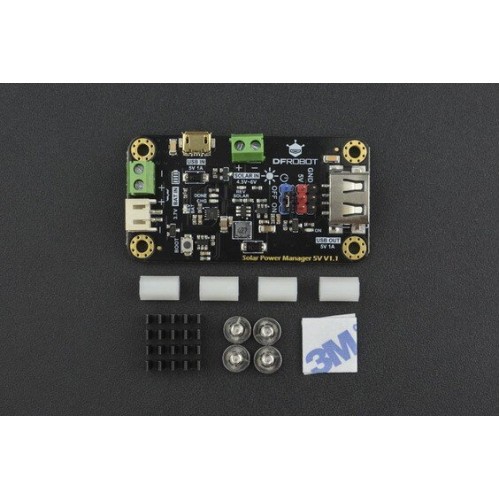

• Solar Power Manager 5V x1
• 2.54mm Black Jumper x1
• M3, 10mm Nylon Pillar x4
• M3, 5mm Stainless Steel Screw x4
• 14 x 14 x 7mm Black Aluminum Cooling Fin x1
• 14 x 14 x 0.5mm Thermal Conductive Silicone Pad x1
