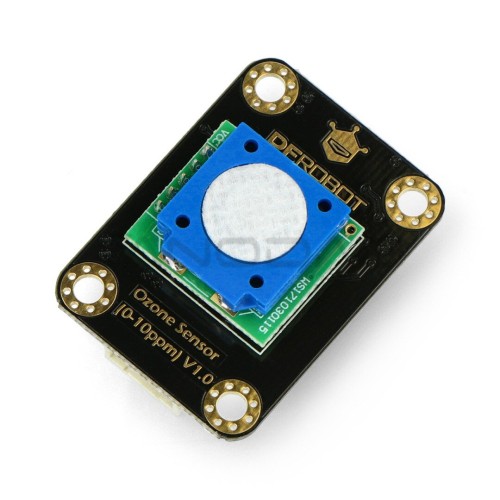

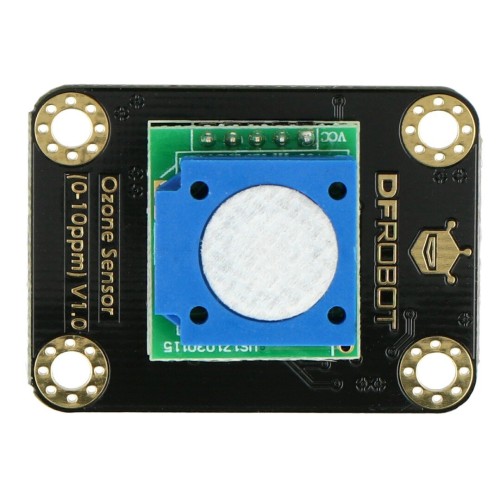

DFRobot SEN0321 Gravity ozone sensor I2C, electrochemical

Electrochemical ozone sensor for accurate O3 concentration measurement in the environment. Compatible with Arduino and Raspberry Pi, the module can be used in portable measuring stations and disinfection rooms. Its measuring range is from 0 ppm to 10 ppm. It communicates through the I2C interface and has a built-in Gravity connector for easy connection to the main module. The sensor is powered from 3.3 V to 5.5 V. The sensor has a service life of 2 years.

Notes:

• Do not connect or disconnect sensors on the module
• It is forbidden to interfere with the module electronics
• Avoid contact with organic solvents (silicones and other adhesives), pharmaceuticals, oils, and high concentrations of gases
• The module must not be completely immersed in resin and must not be submerged in an anaerobic environment
• The module must not be used for a long time in an environment containing corrosive gas
• The unit should be protected against excessive shocks and vibrations
• The warm-up time of the module after the first start-up is 24-48 hours
• Do not tear the white membrane from the sensor
• The module should not be installed in a highly convective environment
• Do not place the module in high concentration organic gas for a long time


Specification:

• Supply voltage: 3.3 V to 5.5 V

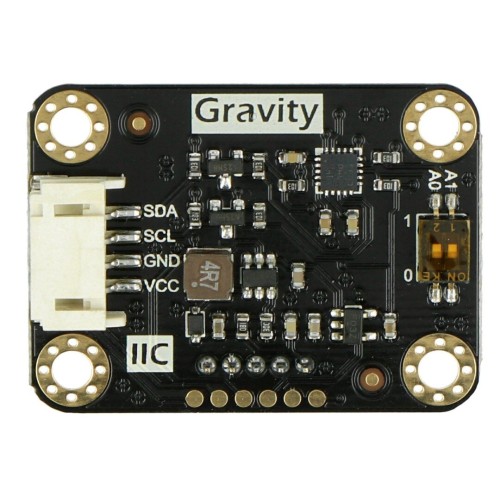

• Interface: Gravity
• Communication: I2C
• Measuring range: 0 ppm to 10 ppm
• Measurement resolution: 0.01 ppm (10 ppb)
• Warm-up time: up to 3 minutes
• Response time: up to 90 seconds
• Recovery time: up to 90 seconds
• Operating temperature: -20 °C to 50 °C
• Operating humidity: 15% to 95% RH
• Storage temperature: -20 °C to 50 °C
• Lifetime: up to 2 years
• Dimensions: 37 x 27 mm
• Weight: 22 g

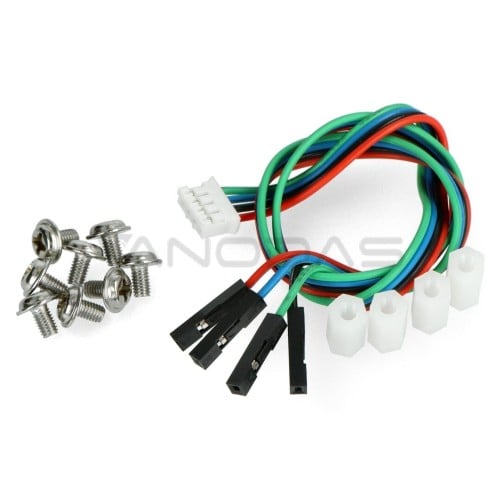

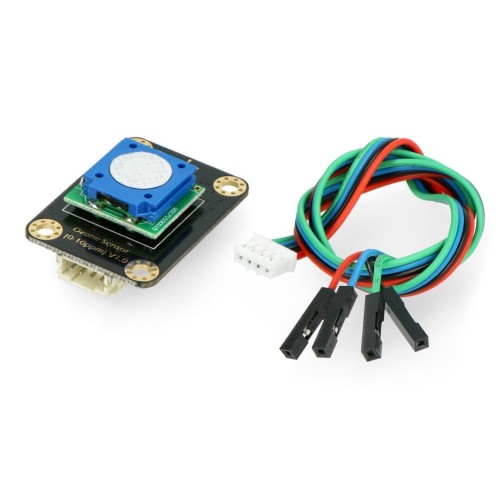

Set includes:

• Gravity cable
• Nylon distance M3 x 10 - 4 pcs.
• Mounting screws M3 x 5 - 8 pcs.


Useful links:
Website of the manufacturer
Manual
