DFRobot micro:Maqueen Plus, advanced education robot platform, DFRobot MBT0021-EN

Brand: Dfrobot
Product Code: AN-17312
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-15
66.10€
Ex Tax: 54.63€

Qty

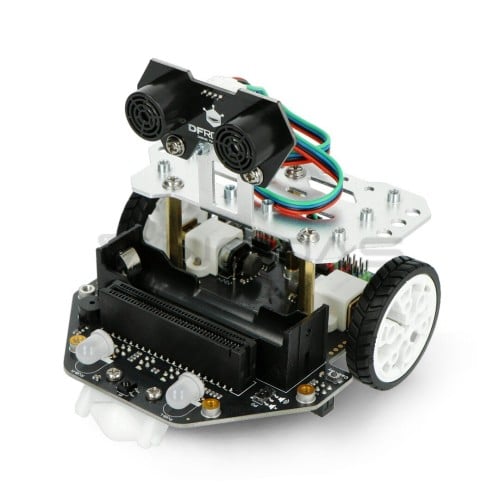

Advanced micro:Maqueen Plus educational robot platform, designed to work with the BBC micro:bit module. The Plus version has been optimized for better power management and a larger battery capacity. It has a larger design than the basic version, allowing you to expand the robot with more functions. Maqueen Plus allows you to mount the HuskyLens module, which allows you to create object recognition projects using AI (artificial intelligence). Designed for intermediate to advanced users, we recommend the basic version for beginners. The robot can be controlled wirelessly using the micro:Gamepad.

Specification:

  • Power supply: 3.7 V 18650 lithium battery
  • Charging voltage: 5 V
  • Charging current: 900 mA
  • Charging time: 4h
  • Battery indicator: 4 LEDs
  • Drive motor: N20 motor 260 rpm
  • Buzzer: 1
  • RGB-LED: 2
  • GPIO expansion ports: P0, P1, P2, P8, P12, P13, P14, P15, P16
  • I2C expansion ports: 3
  • Servo expansion ports: 3
  • Line tracking sensors: 6
  • Line tracking sensor output data: analog + digital
  • Line sensor calibration: support
  • Infrared receiving sensor: 1

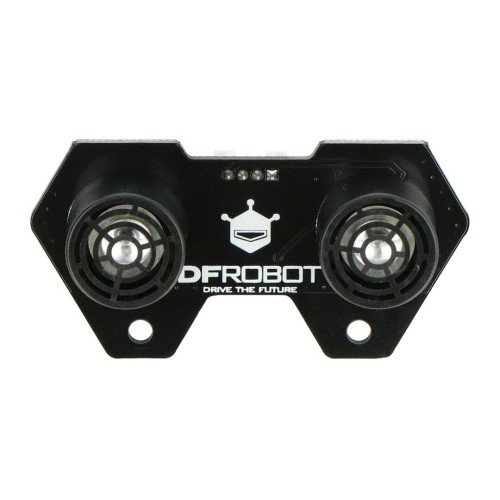

  • Ultrasonic sensor: URM10
  • Top metal plate: 1
  • M3 threaded connections: 12
  • Map size: 50 cm x 50 cm
  • Dimension: 107 x 100mm

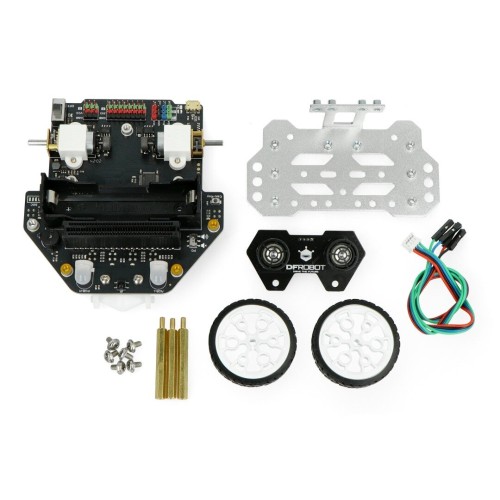

Set includes:

  • Ultrasonic distance sensor x1
  • The metal top plate of the robot x1
  • Wheel x2
  • Copper distance x3
  • Instruction x1
  • Line tracking mat x1

Useful links:
The website of the manufacturer
