DFRobot Gravity, connection cable, for analog sensors to Arduino, 30cm, x10

Brand: Dfrobot
Product Code: AN-19551
Availability: 4-6 business days
Planned delivery date after ordering: 2025-07-11
8.50€
Ex Tax: 7.02€

Qty

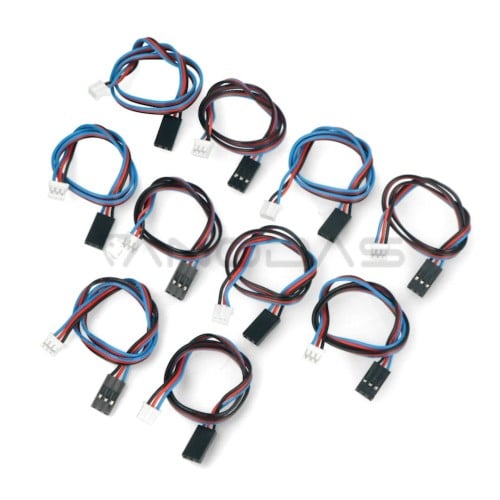

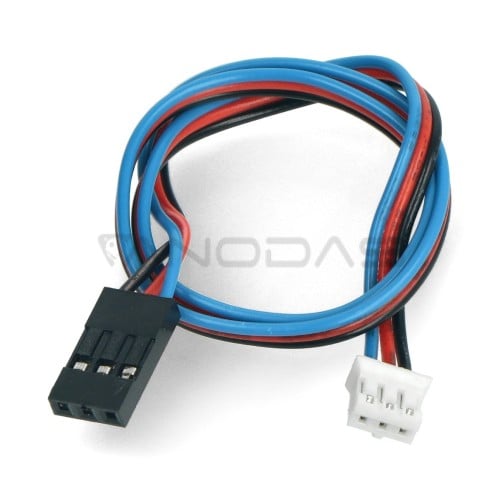

Connection wires with Gravity standard produced by DFRobot. Designed to connect analog peripheral devices (sensors equipped with Gravity connector) with Arduino type microcontroller. The wires are 30 cm long. On one side they have a 3-pin JST connector and on the other side a Gravity connector. They consist of three wires corresponding to power, ground and signal lines. There are 10 pieces of cable in the set.

Specification:
  • Cable standard: Gravity
  • Cable type: analog
  • Maximum voltage: < 50 V
  • Maximum current: < 1000 mA
  • Number of pins: 3
  • Connector type:
    • connector 1: 3-pin JST
    • connector 2: Gravity
  • Pinout description:
    • red: PWR
    • black: GND
    • blue: Signal
  • A number of pieces in the set: 10
  • Length: 30 cm
