DFRobot Gravity: Analog Sound Level Meter 3.3 ~ 5.0V 30dBA ~ 130dBA ±1.5dB 31.5Hz ~ 8.5KHz

DFRobot Gravity sound level meter (also known as the decibel meter, noise meter) is a basic noise measurement instrument. We have launched a sound level meter, which is compatible with Arduino, plug-and-play. It can accurately measure the sound level of the surrounding environment. This product uses instrument circuit, low noise microphone, which make it highly precious. It supports 3.3~5.0V wide input voltage, 0.6~2.6V voltage output. The decibel value is linear with the output voltage, which leads to a simple conversion, without complex algorithm. The connector is plug-and-play, without welding, so this product can be easily used in your application.

Features
High Precision: use instrument circuit, low noise microphone
Wide Voltage Input：3.3~5.0V
Simple Conversion: linear analog output, 0.6~2.6V linear correspondence 30~130dBA, no complex algorithm is required
Easy to Use: plug and play, without soldering
Specification
Measuring Range: 30dBA ~ 130dBA
Measurement Error: ±1.5dB
Frequency Weighted: A Weighted
Frequency Response: 31.5Hz ~ 8.5KHz
Time Characteristics: 125ms
Input Voltage: 3.3 ~ 5.0V
Input Current: [email protected], [email protected]
Output Voltage: 0.6 ~ 2.6V

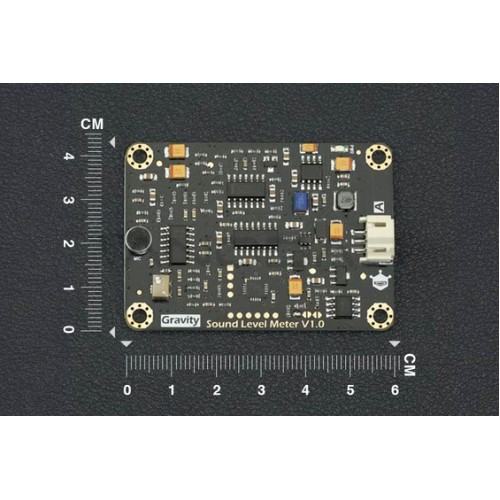

Module Size: 60mm * 43mm / 2.37in*1.68in
Documents
Product wiki
Layout
Shipping List
Analog Sound Level Meter x1
Gravity Analog Cable 3Pin x1
