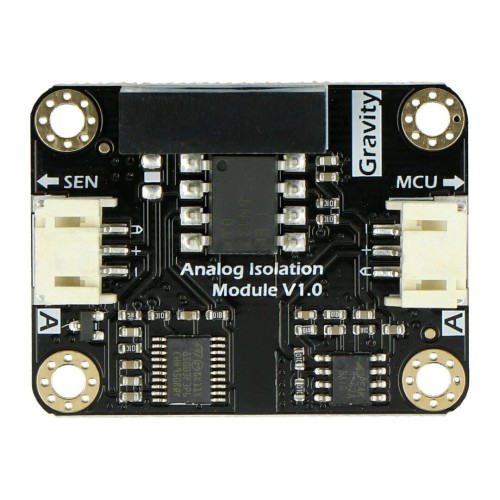

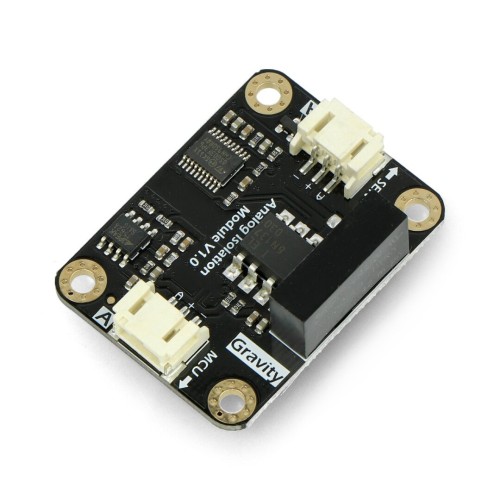

DFRobot Gravity, analog signal isolator

Gravity analog signal isolator is efficient in preventing the electrical interference between sensors. This module has an onboard 5V isolation power which could directly supply to the sensor. Therefore, you do not need to prepare the external power. The connector of wires is special designed for DFRobot 3Pin analog sensor, plug and play, no need for soldering. The analog signal transmission ratio is 1:1, which contributes to a very small impact on output signals of sensors when this module connects into the circuit. Furthermore, you do not need to change the code of the main board.

Specification:

• Working voltage: 5 V
• Response time: 4 seconds
• Analog error: <±20 mV
• Interface type: PH2.0-3P
• Current consumption without load: 75 mA

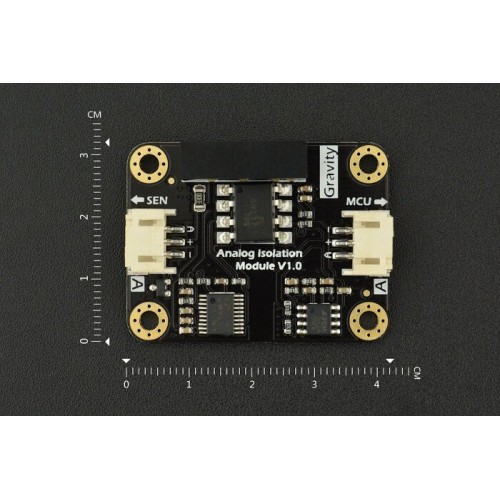

• Dimensions: 42 x 32 mm

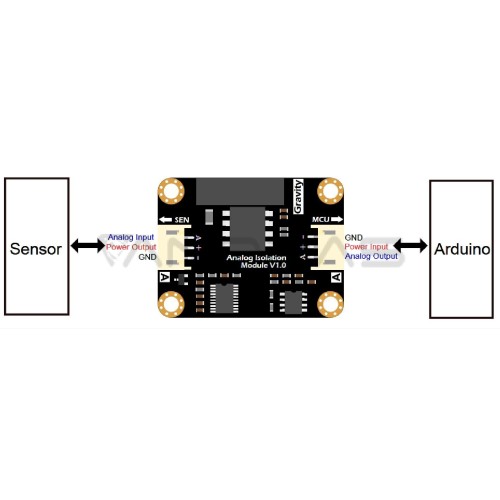

• The end is not insulated (Arduino side)
• Supply voltage: 5.0 V ±0.1 V
• Analog output: 0 - 5.0 V
• The end is isolated (side of the sensor)
• Output voltage: 5.0 ±0.2 V
• Analog input: 0 - 5.0 V

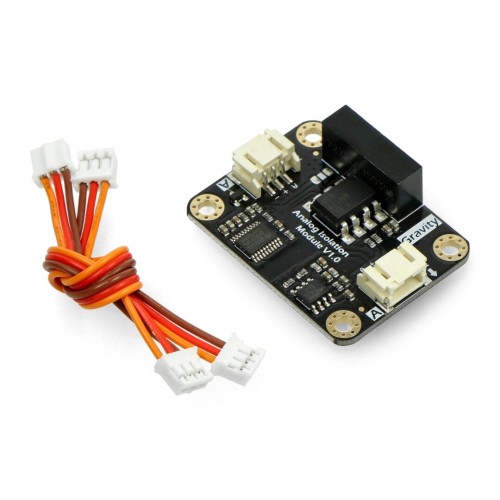

Set includes:

• PH2.0-3P cable x2
