DFRobot DFR0759 Gravity I2C hub splitter, 8 ports

Brand: Dfrobot
Product Code: AN-19018
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
3.20€
Ex Tax: 2.64€

Qty

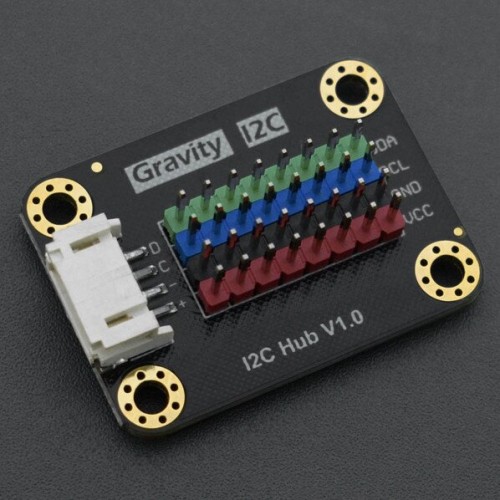

I2C hub splitter allows to connect several modules and peripherals to one I2C connector. Thanks to the DFR0759 hub you can connect up to 8 Gravity series sensors to one socket of the main controller. Dimensions of the product are 27 x 37 mm. The set also includes a dedicated connection cable.

Specification:

  • Connector standard: Gravity
  • Module: I2C bus splitter for Gravity modules
  • Number of ports: 8

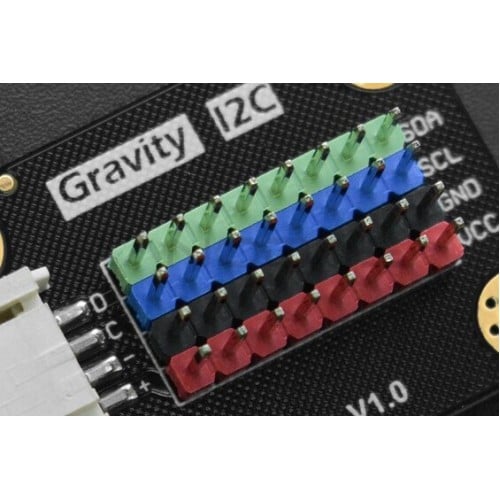

  • Pinouts:
    • SDA - I2C bus data line
    • SCL - I2C bus clock line
    • GND - system ground
    • VCC - module power supply
  • Dimensions: 27 x 37 mm
  • Weight: 17 g

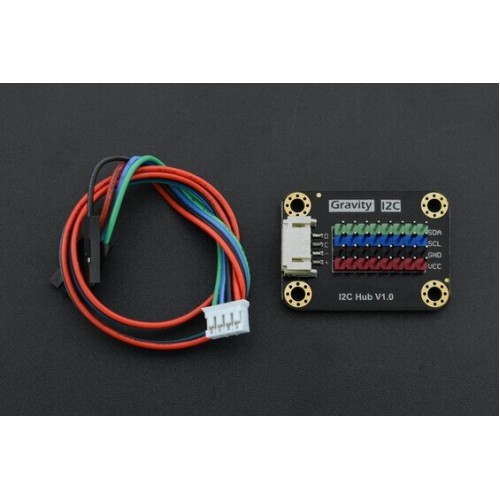

Set includes:

  • Gravity 4-pin I2C / UART connection cable x1

Documents:
Manufacturer's website
