Deep groove ball bearing 6303 2Z 17x47x14

Brand: QC - Quality Control
Product Code: MX-L0101-001-0725
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-23
2.70€
Ex Tax: 2.23€

Qty

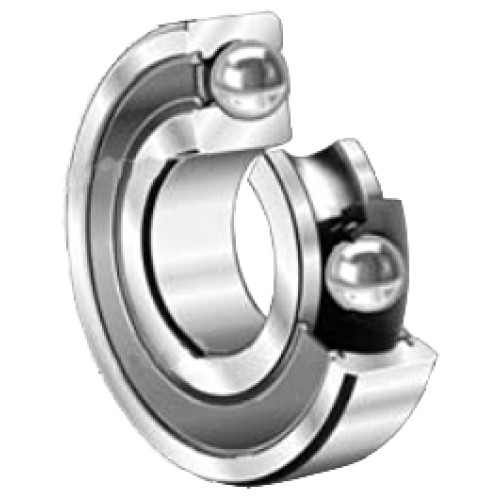

The 6303 2Z bearing is a deep groove ball bearing with 1 row of balls. The bearing with an internal dimension of 17.00 and an external dimension of 47.00 allows for bearing shafts and axles. Made in 2Z construction.

The 6303 2Z bearing, thanks to its simple and compact design, can carry longitudinal and transverse loads. It allows you to transfer loads in two planes even at very high rotational speeds, which is why this bearing is extremely popular in industry.

Maintenance and mechanical properties

The 6303 2Z ball bearing is a bearing filled with an appropriate lubricant directly by the manufacturer. Thanks to this solution, the need for additional maintenance and inspection of the bearing is minimized, and it can operate in difficult industrial conditions, also in dusty conditions, thanks to the use of special protective plates or additional sealing rubbers.} This bearing can operate in a wide temperature range, ranging from - 30 degrees Celsius, up to 100 degrees Celsius. {#C5Compact structure and clearance of 2Z ensure very stable operation of the bearing even in continuous operation.

The 6303 2Z bearing is a bearing that is easy to install and remove. The simple design also translates into a relatively low price of the bearing, which makes it widely used in the industrial and mechanical industries. Modern production technology allows to achieve very high mechanical and durability parameters.


Designation: 6303
Inner diameter d [mm]: 17
Outer diameter D [mm]: 47
Width B [mm]: 14
Bodywork: 2Z
Backlash: normal
Flange [mm]: no
stainless: no
