Deep groove ball bearing 6214 Z NSK 70x125x24

Brand: NSK BEARINGS
Product Code: MX-L0101-001-0303
Availability: Temporarily Out Of Stock
74.00€
Ex Tax: 61.16€
Deep groove ball bearings

Deep groove ball bearings are the type of bearing most often used in industry and the machinery industry. A huge number of series and types of deep groove ball bearings makes these bearings easy to select and at the same time easy to replace in the event of their incorrect operation. The simple, inseparable design allows them to operate at high speeds, guaranteeing durability and efficiency during operation. Moreover, the simple design does not require frequent maintenance of the bearings, so their maintenance is based on basic activities such as lubrication.

Application and construction

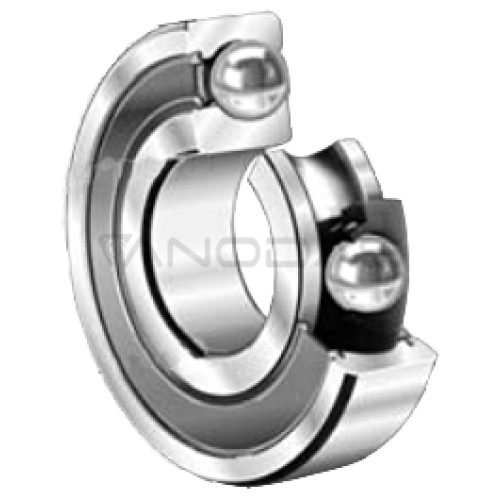

62 series deep groove ball bearings are non-separable bearings. Thanks to this, their operation at high speeds does not damage the bearing or rings. Bearings from the 62 series have 1 row of balls. The simple and compact design allows for easy replacement and operation in difficult industrial conditions. Deep groove ball bearings are widely used in industry, including heavy industry, where conditions are extremely difficult. A deep groove ball bearing is composed of two rings - outer and inner, as well as a cage with balls. Deep groove ball bearings are often used in small sizes. No other type of bearings is able to withstand such high rotational speeds while maintaining small dimensions. That's why their use is so wide.

Technical parameters

The use of ball bearings in industry is the result of high functionality. 6214 Z bearings manufactured by NSK are characterized by very high rotational speeds. The outer diameter of the bearing is 125.00 and the inner diameter is 70.00. The stable, simple and durable design of the 6214 Z bearings allows for effective and stable operation at high rotational speeds. .


Designation: 6214
Inner diameter d [mm]: 70
Outer diameter D [mm]: 125
Width B [mm]: 24
Construction: Z
Backlash: normal
Flange [mm]: no
stainless: no
