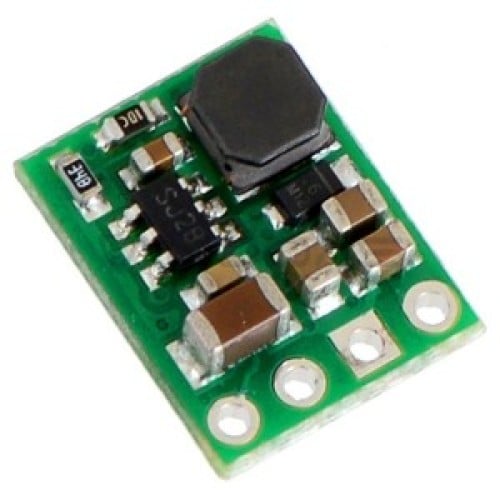

DC/DC Voltage Regulator 6V-42V To 5V D24V3F5 (STEP DOWN)

Product Code: AN-01331
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
14.80€
Ex Tax: 12.23€

Qty

Converter type step-down is used to power the systems operating voltage 5 V Car system is the wide input voltage range from 3.8 V to 42 V (the minimum value depends on the voltage drop-out). The module allows the current consumption to 300 mA is enough value to power ordinary integrated circuits. In our offer we have also version for 3.3 V and maximum load current to 600 mA.

Specification

  • Input voltage: 6* V 42 V
  • Output voltage: 5 V
  • Input current max: 300 mA
  • An efficiency level of 80-90 %
  • The switching frequency is 550 kHz
  • Dimensions: 12 x 10 x 3 mm
  • Weight (without connectors): 0.5 g
