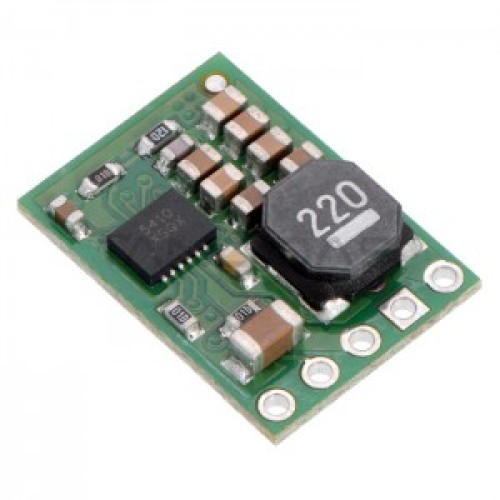

DC/DC Voltage Regulator 12.1V-36V To 12V D24V10F12 (STEP DOWN)

Product Code: AN-03022
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
17.30€
Ex Tax: 14.30€

Qty

The regulator switching DC-DC converts the input voltage from 12.1 V* up to 36 V on the value of the output signal of 12 V. it Allows current up to 1 A. the System is characterized by high efficiency at 80 % - 93 %.

Specification

  • Input voltage: from 12.1 V* up to 36 in
  • Output voltage: 12 V
  • Output voltage accuracy: 4 %
  • Maximum output current: 1 A
  • Switching frequency: 500 kHz
  • Built-in protection:
    • before a too large current consumption
    • from high temperature
    • soft-start 2 MS
  • Driver: ISL85410
  • Dimensions: 18 x 13 x 3.5 mm
  • Four mounting holes for screws M2
  • Weight: 5 g (without connectors)
