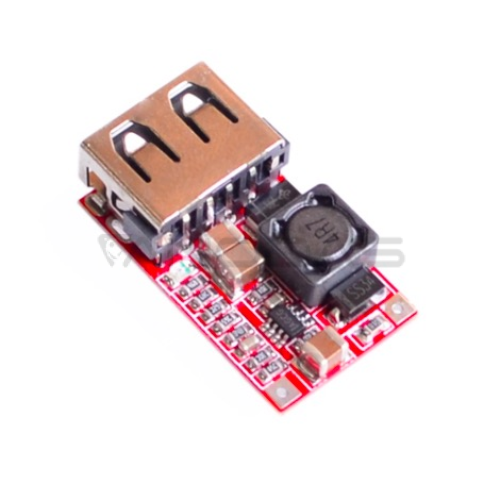

DC/DC Buck Module 6-24V to 5V 3A USB (STEP DOWN)

DC-DC Buck Module 6-24V 12V/24V to 5V 3A USB Step Down

The max output current 3A, long time use 2.1A, enough use
New design, 3 solid state ceramic capacitors(MCC), more safe and low ripple
Synchronous rectification, High efficiency, 6.5V to 5V 0.7A can up to 97.5%, 12V to 5V 1A can up to 94%
Flat copper inductor, improve conversion efficiency
With output overvoltage protection. There is 1.5A fuse, output 5V have 300W TVS tube protect your USB device
Using the latest USB identification circuit, perfectly compatible with IPHONE, the most of Android phones, IPAD etc
Output voltage indicator (RED)
Small size, 26.4 (L) * 15 (W) * 7.4 (H) mm
Input with reverse polarity protection diode, will not damage when input connect incorrect


Properties: non-isolated buck module (BUCK) synchronous rectification
Input voltage: DC 6-24V
Output voltage: 5.1-5.2V
Output current: 3A MAX (please enhance heat dissipation when full load using), the actual test result input 12V output current 2A do not need to enhance heat dissipation.
Switch frequency: 500KHz
Operating temperature: Industrial grade (-40 ° to + 85 °) (the higher the ambient temperature, the lower the output power)
Connection mode: Soldering
Input mode: Soldering
Output mode: USB
