Data logger shield

Product Code: AN0214-48
Availability: 4-6 business days
Planned delivery date after ordering: 2025-07-11
8.20€
Ex Tax: 6.78€

Qty

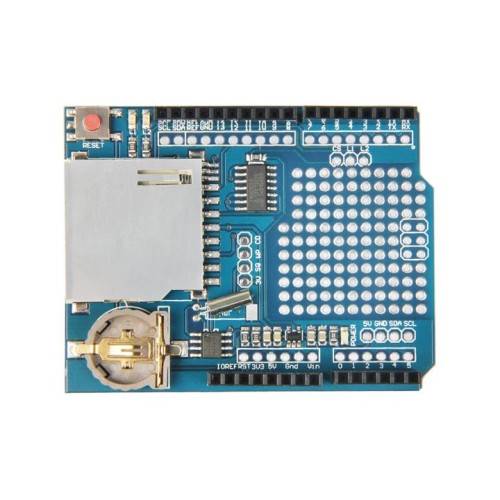

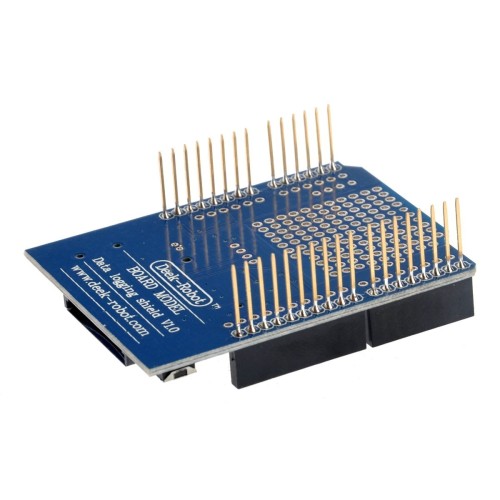

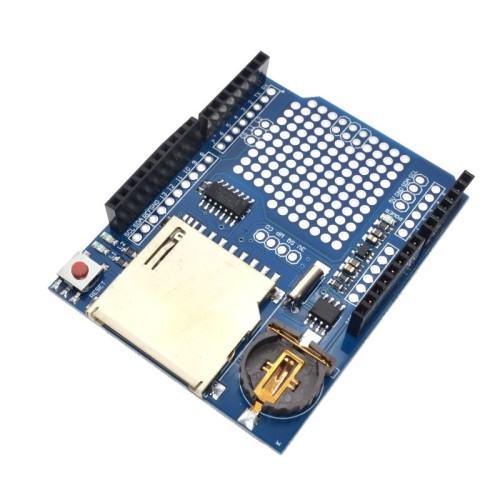

SD card reader shield for Arduino microcontrollers. In addition to reading SD cards, the manufacturer has added other useful features to it: 3.3V voltage converter ensures that the SD card is protected from voltage surges, battery slot allows inserting a battery that will ensure data security even when the power is turned off in Arduino, built-in crystal oscillator allows use the shield as a real time clock and measures time even after disconnecting it from the Arduino.
The shield also has free soldering pads for additional components.

Note: The accessory uses a CR1220 3V battery for the auxiliary power supply, which is sold separately.

Technical specs:
●    Built-in SD card slot
●    Supply voltage: 5V DC
●    Built-in 3.3V voltage converter
●    Logic signal voltage: 3.3V
●    The battery slot allows you to insert a battery that will ensure data security even when the power is turned off
●    A crystall oscillator is installed
●    The shield has free soldering pads for additional components.
●    Suitable for Arduino Uno, Duemilanove, Diecimila, Leonardo, ADK / Mega R3 and other similar microcontrollers
External links and applications:
●    Data recording station
●    Surveillance camera control
