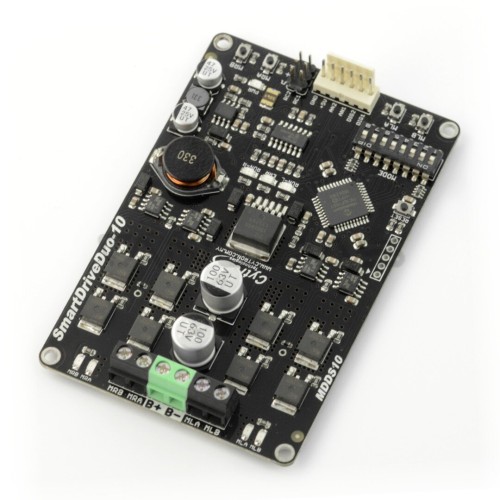

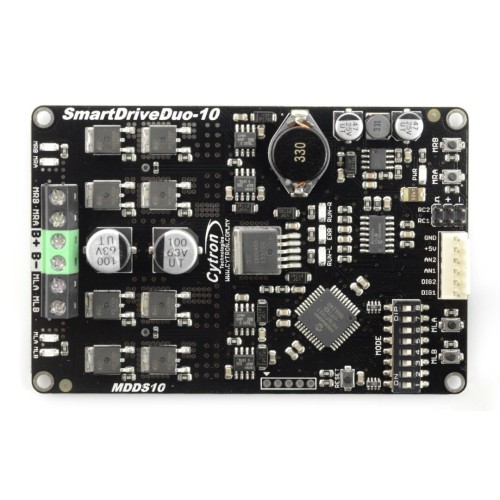

Cytron SmartDriveDuo MDDS10 - two-channel 35V/10A motor controller

Brand: Cytron
Product Code: AN-12406
Availability: Temporarily Out Of Stock
72.20€
Ex Tax: 59.67€
Two-channel intelligent DC motor controller. Continuous current per channel 10 A (momentary 30 A). Supply voltage from 7 V to 35 V. It has interfaces such as UART, PWM, RC and analog output. Suitable for building fighting robots controlled by RC remote control.

Specification:
  • Supply voltage: from 7 V to 35 V DC
  • Logic part voltage: from 1.3 V to 5 V
  • Average current per channel: 10 A (momentary 30 A max. 1s)
  • Number of channels: 2
  • PWM speed control frequency up to 16 kHz
  • Indicator lights: low voltage, high voltage
  • Protection against overheating
  • Interfaces: UART, PWM, RC, Analog
  • No reverse polarity protection
  • Dimensions: 101,09 x 66,8 mm
Set includes:
  • Cytron MD10C motor controller
  • 6-pin plug and pins for the case - for self-assembly
  • Plastic spacers
  • 2x 3-pin cable
  • Manual
