Cytron MD25HV - single-channel DC motor driver - 7V-58V/25A

Brand: Cytron
Product Code: AN-14813
Availability: 4-6 business days
Planned delivery date after ordering: 2025-07-15
73.80€
Ex Tax: 60.99€

Qty

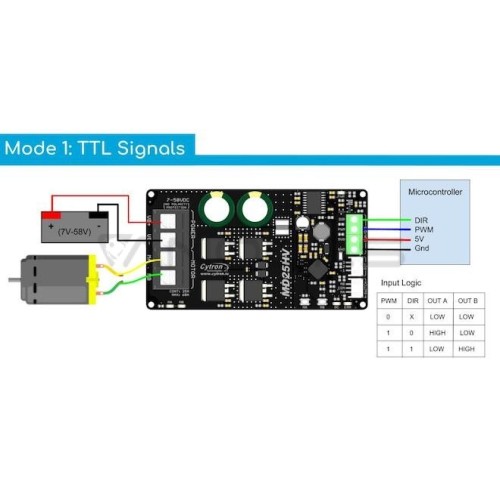

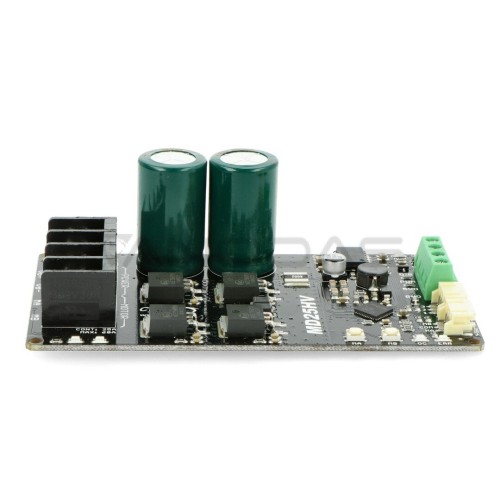

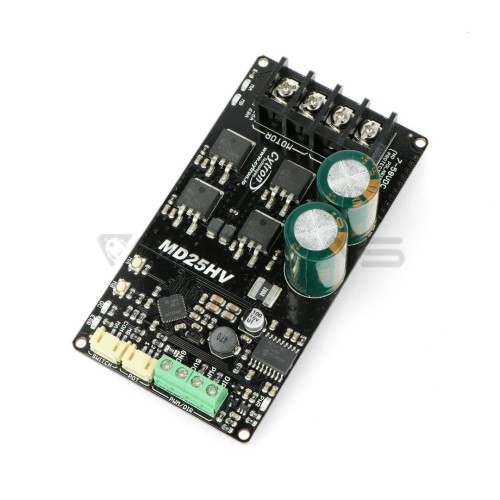

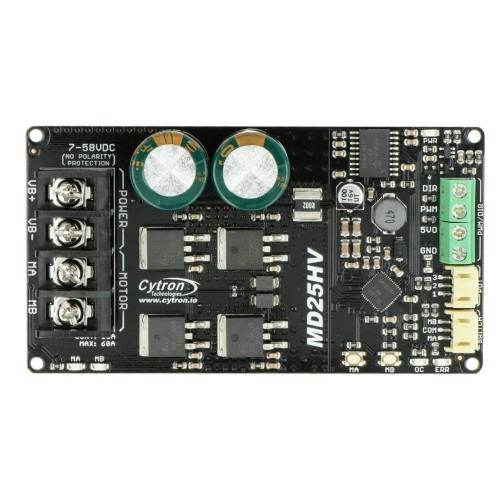

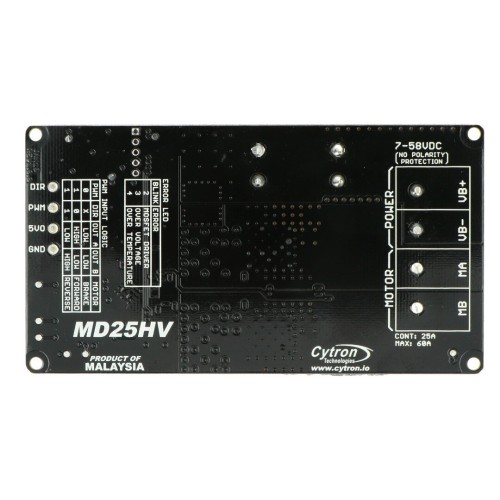

A set with a single-channel DC motor controller by Cytron, equipped with a rocker switch for changing the direction of rotation and a potentiometer for speed control. The controller works with motors supplied with voltage from 7 to 58 V and current up to 25 A (momentary 60 A). The board has dimensions of 112 x 61 x 32 mm.

Specification:
  • Supply voltage: 7 to 58 V
  • Maximum continuous current: 25 A
  • Maximum instantaneous current: 60 A
  • Number of channels: 1
  • Security:
    • Overcurrent
    • Under-voltage
    • Temperature
  • Dimensions: 112 x 61 x 32 mm
  • Weight: 81 g
