Cytron HAT-MDD10 - two-channel DC engine driver 24V/10A - overlay for Raspberry Pi

Brand: Cytron
Product Code: AN-12413
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-11
39.00€
Ex Tax: 32.23€

Qty

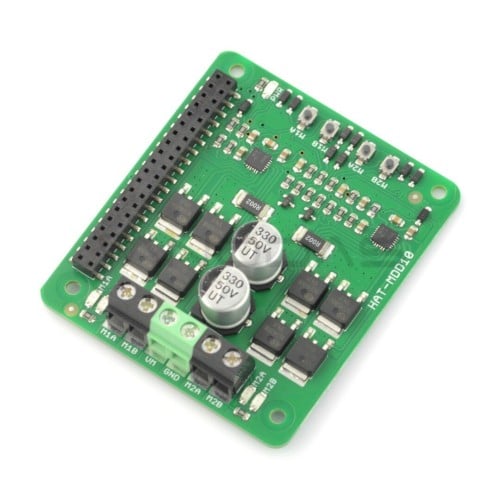

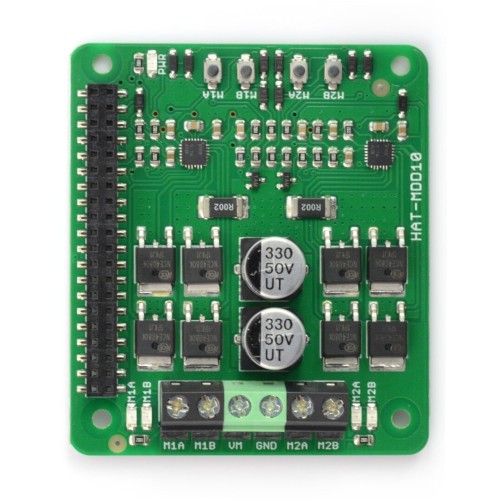

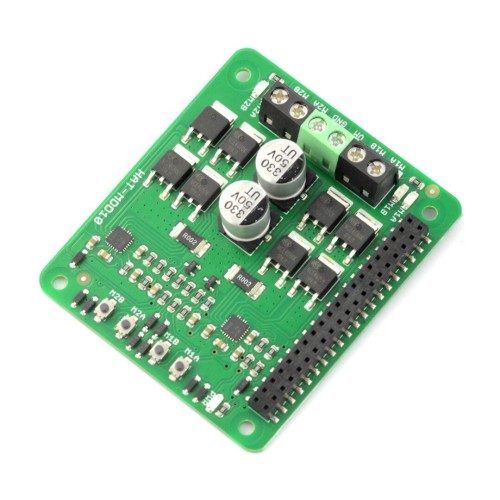

Shield with the dual-channel driver of motors operating with a voltage from 6 V to 24 V and current up to 10 A per channel (max. 30). The system can be connected directly with the GPIO connectors of Raspberry Pi minicomputer 3+, 3, 2, B+ and A+.

Specification:
  • Supply voltage: 6 V to 24 V
  • Average current per channel: 10 A (up to 25 °C without the use of a radiator)
  • Short-time current: up to 30 A (up to 10s)
  • Constructed of NMOS H-Bridge transistors
  • Built-in LEDs for each channel
  • Frequency of the speed control of PWM: 20 KHz
  • Buttons for manual control of motors

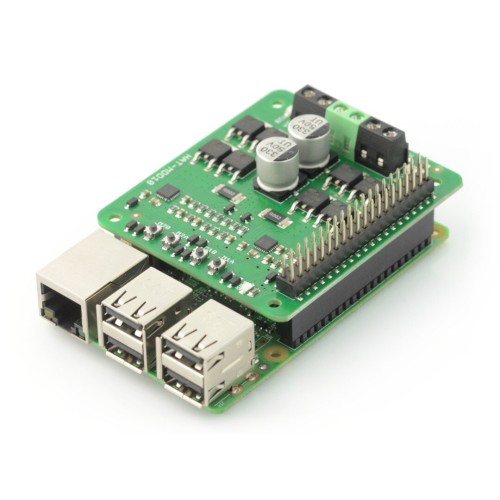

  • Connector compatible with: Raspberry Pi 3+, 3, 2, B+, A+
  • Supports TTL PWM from the microcontroller
  • The overcurrent protection
  • Dimensions: 67,5 x 59 mm
Set includes:
  • HAT-MDD10 shield

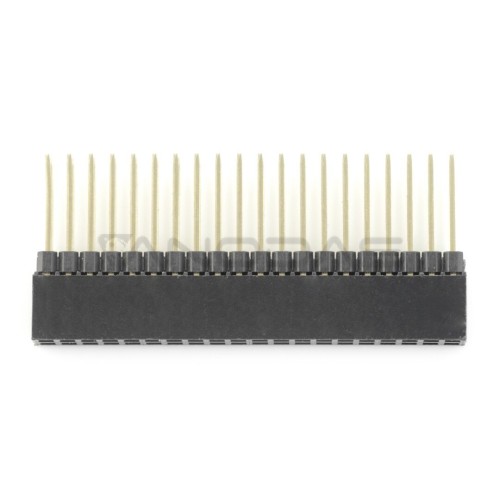

  • Extended goldpin strip of 25 mm
