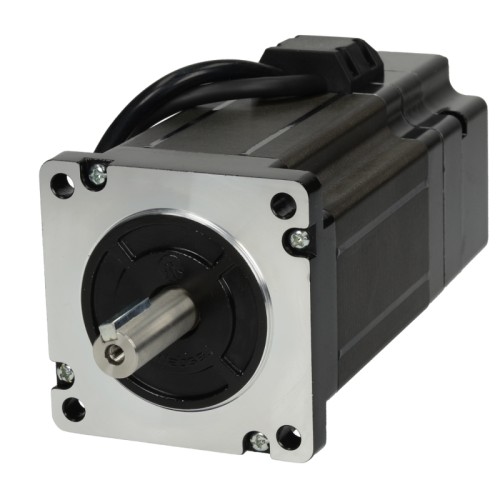

CS-M23445-B hybrid servo stepper motor - 4.5Nm with brake

Brand: Leadshine Technology
Product Code: MX-IW-CS-M23445-B
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-15
208.40€
Ex Tax: 172.23€

Qty

The CS-M23445-B is a 2-phase stepper motor with a stopping torque of 4Nm integrated with a differential rotary encoder completed with 1000 lines (4000 counts/revolution). It is equipped with a brake with a force of 4Nm (letter B in the marking).


Length (mm): 135
Holding moment [Nm]: 4.5
Resist. phase [Ohm]: 0.47
Phase induction [mH]: 3.6
Weight [kg]: 2.7
Brake: 4 Nm
Motor Size: NEMA34 (86mm)
Rotation/step [°]: 1.8
Current per phase [A]: 6
Rotor inertia [g.cm²]: 1400
Encoder [imp/rev]: 1000
IP65: No
Shaft diameter [mm]: 14
