CS-M22323-E5Z hybrid engine - 2.3Nm

Brand: Leadshine Technology
Product Code: MX-IW-CS-M22323-E5Z
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-16
121.20€
Ex Tax: 100.17€

Qty

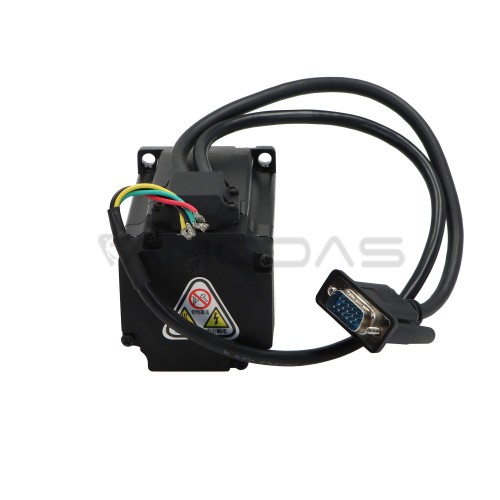

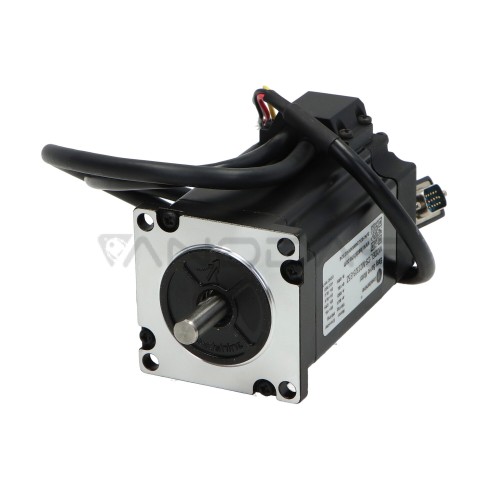

The CS-M22323-E5Z is a 2-phase stepper motor with a stopping torque of 2.3Nm integrated with a differential rotary encoder completed with 1000 lines (4000 counts/revolution).


Length (mm): 96
Holding moment [Nm]: 2.3
Resistance phase [Ohm]: 0.38
Phase induction [mH]: 1.75
Weight [kg]: 1.3
Brake: No
Motor Size: NEMA23 (57mm)
Rotation/step [°]: 1.8
Current per phase [A]: 5
Rotor inertia [g.cm²]: 480
Encoder [imp/rpm]: 5000
IP65: No
Shaft diameter [mm]: 8
