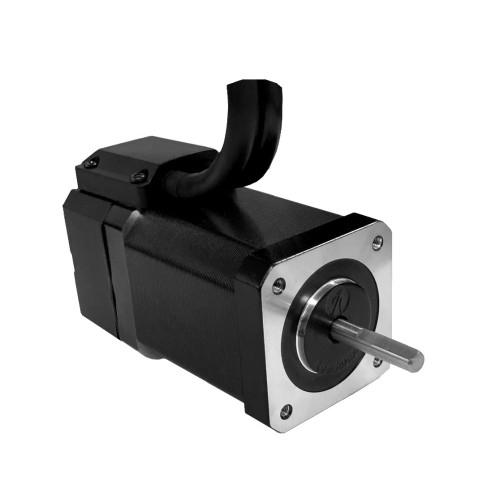

CS-M21708 hybrid servo stepper motor - 0.8Nm

Brand: Leadshine Technology
Product Code: MX-IW-CS-M21708
Availability: Temporarily Out Of Stock
75.00€
Ex Tax: 61.98€

The CS-M21708 is a 2-phase stepper motor with a stopping torque of 0.8 Nm (114 oz) integrated with a differential rotary encoder completed with 1000 lines (4000 counts/revolution).

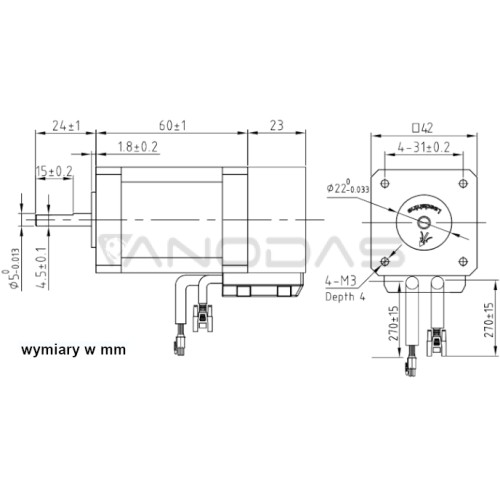

Length (mm): 83
Holding moment [Nm]: 0.8
Resist. phases [Ohm]: 1
Phase induction [mH]: 2.4
Weight [kg]: 0.73
Brake: No
Motor Size: NEMA17 (42mm)
Rotation/step [°]: 1.8
Current per phase [A]: 2.5
Rotor inertia [g.cm²]: 110
Encoder [imp/rev]: 1000
IP65: No
Shaft diameter [mm]: 5
