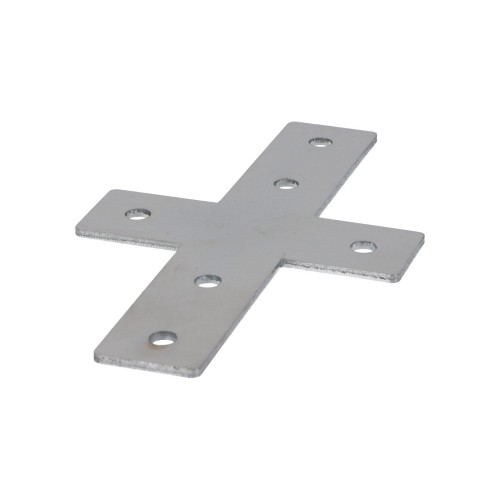

Cross connection plate for 20x20 profiles

Brand: Wagney
Product Code: MX-IW-OB2020-PLATE
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-15
7.30€
Ex Tax: 6.03€

Qty

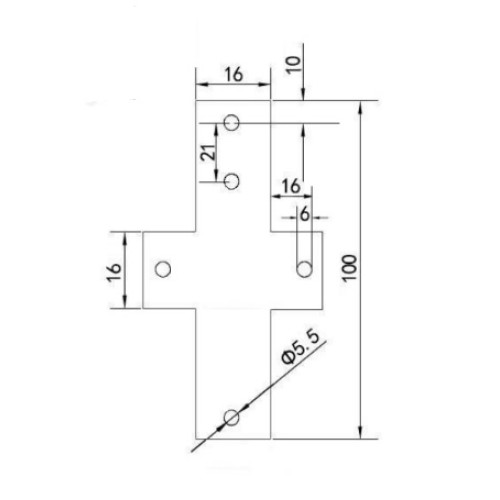

The WAGNEY X-type 20x20 profile connecting plate is an element that greatly facilitates the connection of three or four profiles. They are used in solutions where a collision occurs in the corner of a perpendicular connection, where internal connectors cannot be used. X-type connectors are steel sheets coated with galvanized steel to protect against corrosion, and holes with a diameter of 5.5 mm allow the use of T-head nuts and bolts with a half-round head or T-bolts and any M5 nuts. Thanks to this type of connectors, we do not have to undergo additional processing of the profiles themselves, which significantly reduces costs.


Profile series: Series 20, 6mm groove
Accessories: Sheets
