Converter USB-UART FTDI FT232RL, microUSB port, Waveshare 11324

Brand: Waveshare
Product Code: AN-05341
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
10.40€
Ex Tax: 8.60€

Qty

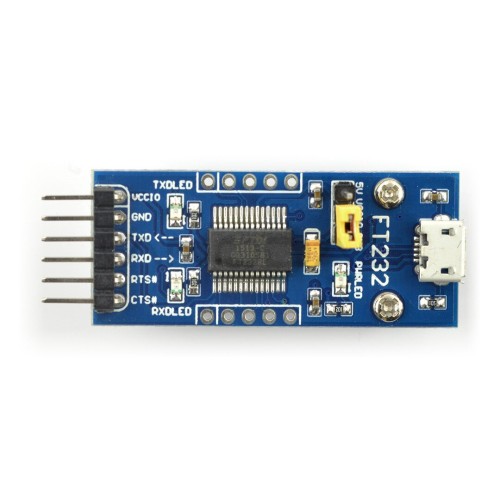

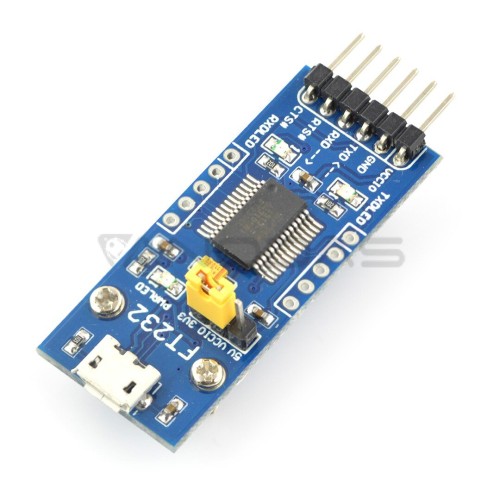

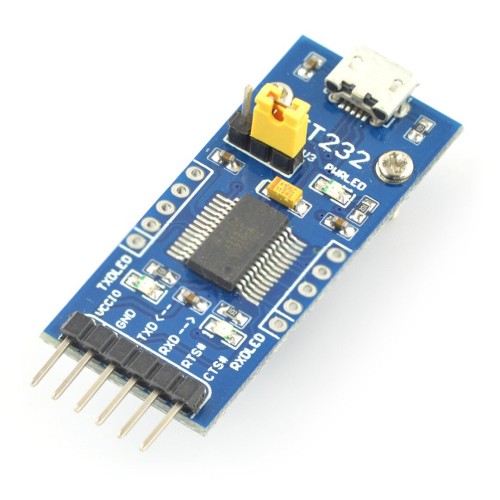

Converter which provides communication between the serial interfaces USB and UART. It allows exchanging data between the computer and the systems which use microcontrollers. The module is based on an FT232RL. The operating system is visible as a virtual COM port. It has a microUSB port.

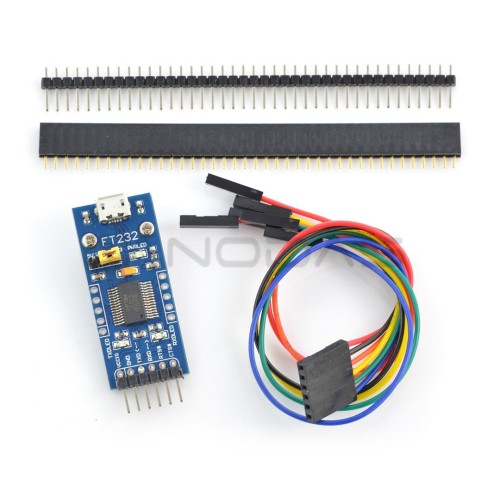

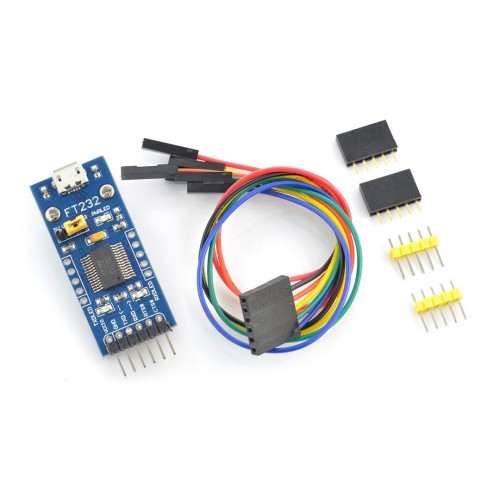

The device works with voltages of 3.3 V and 5 V. The voltage selection is done using jumpers. The circuit board has connectors with a raster of 2.54 mm suitable for breadboards or for connection using wires. Contacts VCCIO, GND, TXD, RXD, RTS# and CTS# are already soldered goldpin connectors - 2.54 mm raster. The rest need to solder by yourself.
