Converter RS232, UART with connector DB9, SP3232 3.3V/5V, Waveshare 3965

Brand: Waveshare
Product Code: AN-04475
Availability: Temporarily Out Of Stock
5.30€
Ex Tax: 4.38€

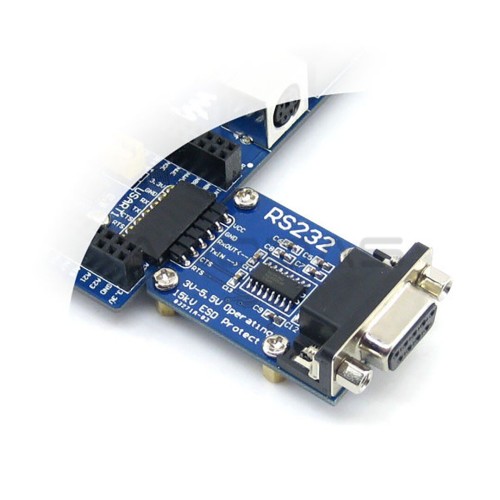

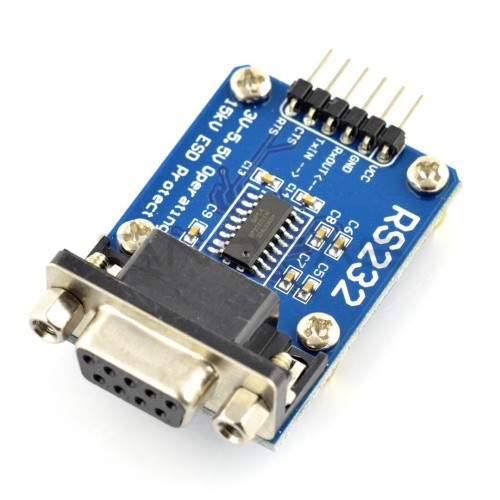

Converter allows connecting serial interface RS232 and UART - voltage standard TTL. The module on one side has a D-SUB connector, on the other outputs soldered goldpin connectors - 2.54 mm raster. The Control system is a converter SP3232 (compatible with MAX3232) with operating voltages of 3.3 V and 5 V.

Specification:

  • Supply voltage: from 3.0 V to 5.5 V
  • Driver: SP3232 - compatible with MAX3232
  • Outputs:
    • Management UART interface - connector goldpin raster 2.54 mm
    • RS232 - DB9 connector
  • Mounting holes with screws

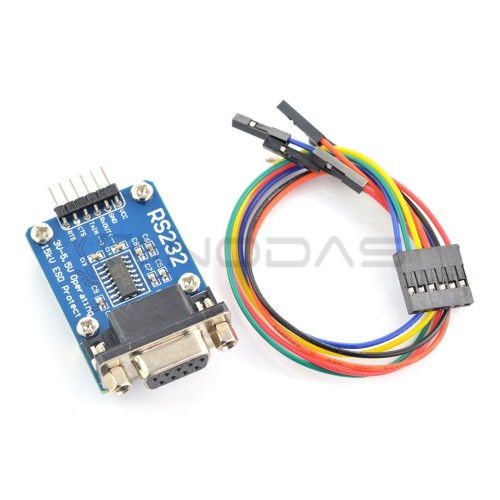

  • Included 6-pin cable with female ends
  • Board sizes: 45 x 31 mm
