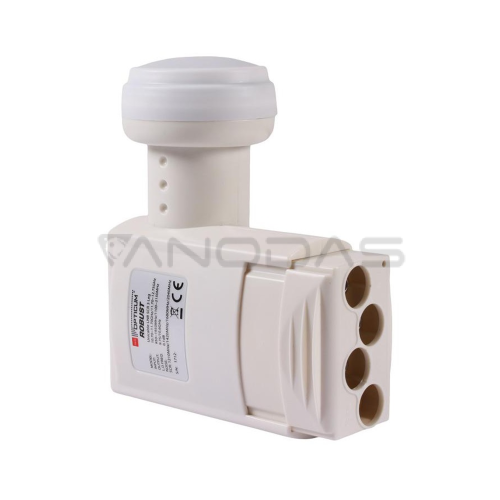

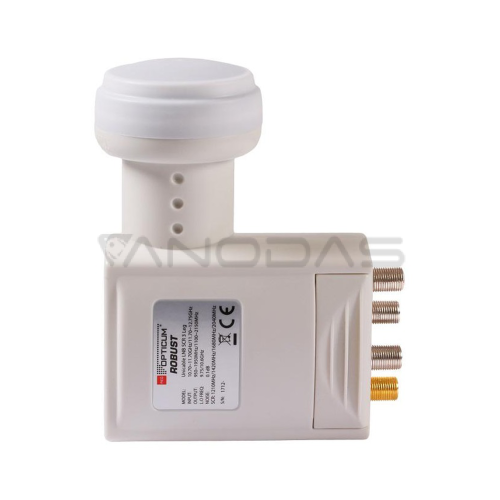

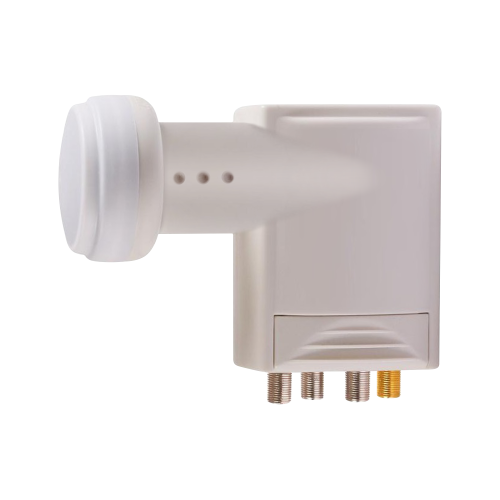

Converter OPTICUM UNICABLE SCR/3LEGACY ROBUST 4UB
Converter Opticum UNICABLE Red Robust SCR 3 LEGACY
The UNICABLE function consists in using 4 frequencies for signal transmission:
- Receiver 1 - 1210MHz
- Receiver 2 - 1420MHz
- Receiver 3 - 1680MHz
- Receiver 4 - 2040MHz.

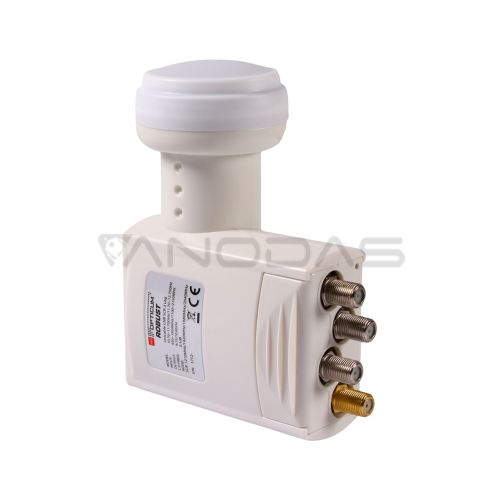

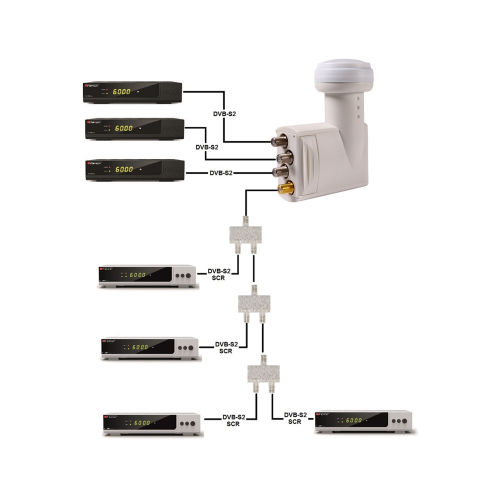

One output of the UNICABLE converter (SCR) in gold color allows you to run the signal with one cable up to max. 4 digital receivers with SCR or UNICABLE signal. Three converter outputs in silver color allow you to connect three traditional digital receivers.
Technical parameters:
- Lower input band: 10.7-11.7 GHz
- Lower oscillator: 9.75 GHz
- Upper input band; 11.7-12.75GHz
- Upper oscillator: 10.6 GHz
- IF output channel 1 (SCR): 1210 MHz
- IF output channel 2 (SCR): 1420 MHz
- IF output channel 3 (SCR): 1680 MHz
- IF output channel 4 (SCR): 2040 MHz
- Reinforcement: area 57 dB
- Number of full band outputs: 2
- Noise figure: 0.1 dB
- Current consumption: 300mA
- Handle diameter: 40mm
- Operating temperature: - 40°C + 65°C
The UNICABLE function consists in using 4 frequencies for signal transmission:
- Receiver 1 - 1210MHz
- Receiver 2 - 1420MHz
- Receiver 3 - 1680MHz
- Receiver 4 - 2040MHz.
One output of the UNICABLE converter (SCR) in gold color allows you to run the signal with one cable up to max. 4 digital receivers with SCR or UNICABLE signal. Three converter outputs in silver color allow you to connect three traditional digital receivers.
Technical parameters:
- Lower input band: 10.7-11.7 GHz
- Lower oscillator: 9.75 GHz
- Upper input band; 11.7-12.75GHz
- Upper oscillator: 10.6 GHz
- IF output channel 1 (SCR): 1210 MHz
- IF output channel 2 (SCR): 1420 MHz
- IF output channel 3 (SCR): 1680 MHz
- IF output channel 4 (SCR): 2040 MHz
- Reinforcement: area 57 dB
- Number of full band outputs: 2
- Noise figure: 0.1 dB
- Current consumption: 300mA
- Handle diameter: 40mm
- Operating temperature: - 40°C + 65°C
