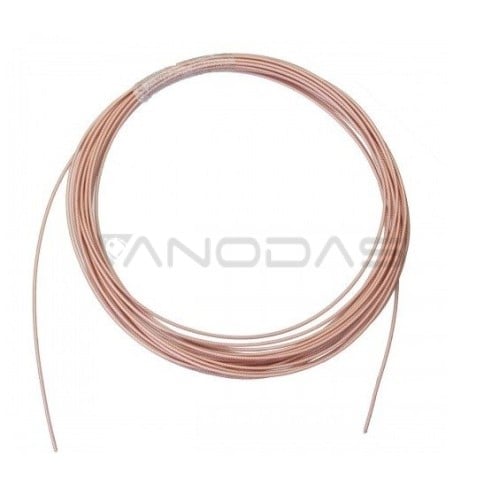

Coaxial cable - antenna - RG178 - impedance 50Ohm - PTFE insulation

Product Code: ABC-10057
Availability: Temporarily Out Of Stock
2.90€
Ex Tax: 2.40€

RG178 coaxial cable dedicated to radio equipment, ham radio, pigtails in WIFI systems, etc. In modeling, it is used as an antenna cable.

Specification:

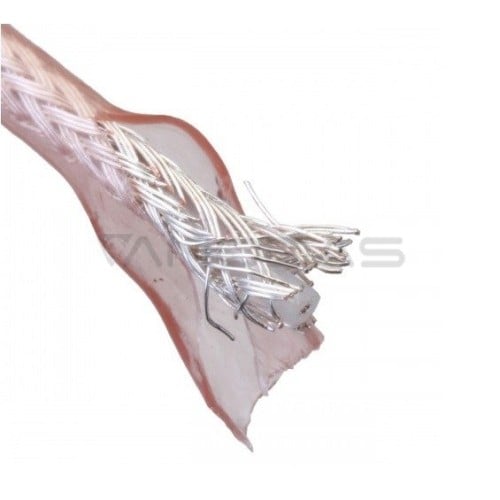

  • Wire Material: Silver Plated Copper: StCuLi 0.31 mm
  • Outer diameter: 1.8 mm
  • Insulation: PTFE
  • Braid: copper plated with silver
  • Outer shell: FEP
  • Impedance: 50 ohm - +/- 2
  • Capacitance: 96.5 pF/m
  • Working temperature: -55 °C ~ 200 °C
  • Damping:
    • 10MHz - 18.4dB/100m
    • 50MHz - 34.4dB/100m
    • 100MHz - 45.9dB/100m
    • 200MHz - 62.3dB/100m
    • 400MHz - 91.9dB/100m
    • 700MHz - 121.4dB/100m
    • 900MHz - 139.4dB/100m
    • 1000MHz - 150.9dB/100m
    • 3000MHz - 265.7dB/100m
