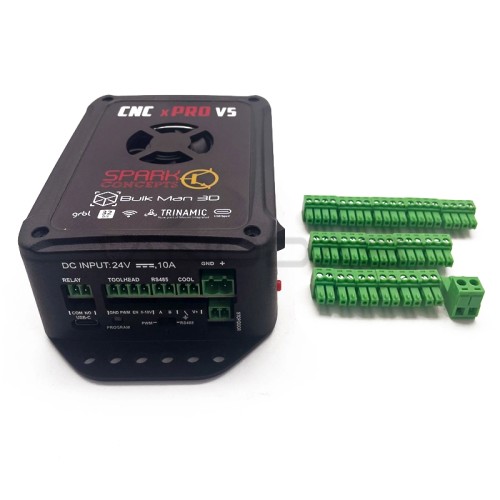

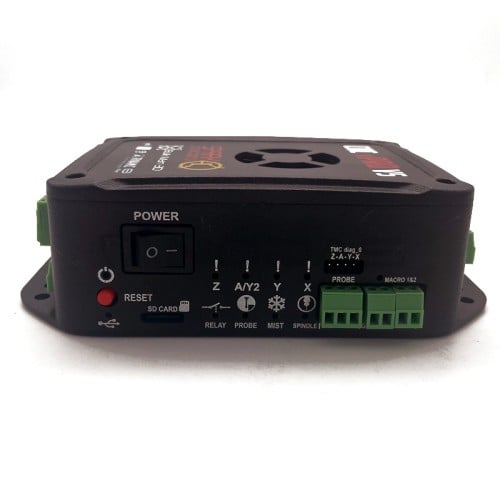

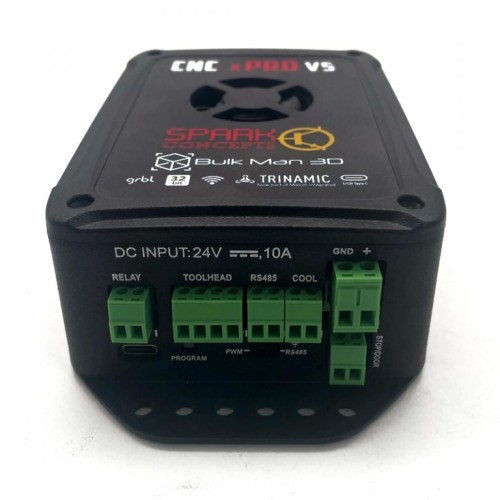

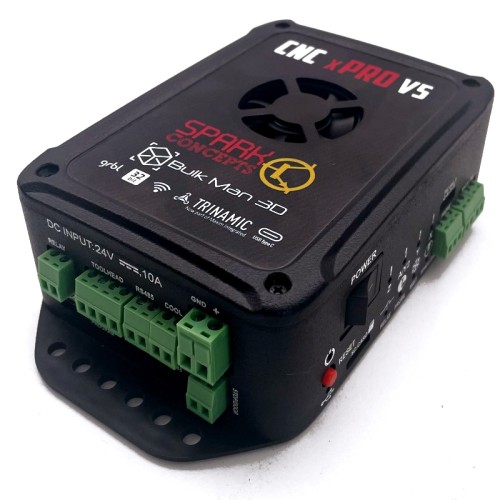

CNC xPRO V5 Controller Bundle

The plug and play xPRO V5 brings you the advanced stepping and power of Trianamic drivers along with Wifi and USB interfaces, all powered by a 32 bit processor and wrapped in a beautiful ABS case (with integrated cooling).

The cables on this Bundle are designed for machines of the following sizes: 1500mm x 1500mm

This controller bundle is fully compatible with the latest version of GRBL which is an excellent control software for our CNC machines.

The controller bundle contains all the electronic hardware required to run your machine and has been designed to be as intuitive and easy to install as possible.

Control System:

CNC xPRO V5:

• High Power 6A stepper drivers based on the Trinamic TMC5160
• Sleek Web Interface with cut-from-SD capability (SD card included)
• USB-C interface work with GRBL sender programs
• Built-in Heatsink & Temperature Controlled Cooling Fan
• Fully assembled in a custom ABS case
• VFD support – PWM, 0-10V, and RS485
• Laser support – PWM, 0-5V, 0-10V
• XYZ Probe input
• Integrated relay
• Safety Door/Estop switch terminal
• Integrated power switch
• 4 software defined, independent motor drivers can:
• Clone any axis (default to XYYZ)
• True 4 axis motion XYZA
• Selectable limit switch voltage (5V or 24v)

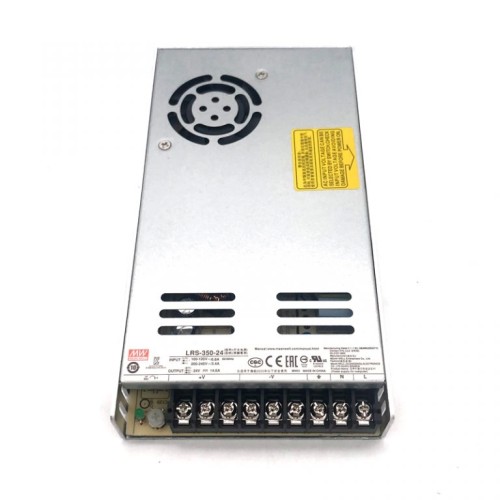

Power Supply

• Output Voltage-Channel: 24V
• Output Power: 348 W
• Input Voltage: 90 VAC to 132 VAC/180 VAC to 264 VAC, 240 VDC to 370 VDC
• Output Current-Channel: 14.6A
• Mounting Style: Chassis
• Length: 215 mm
• Width: 115 mm
• Height: 30 mm
• Input Frequency: 47 Hz to 63 Hz
• Unit Weight: 760 g

Electrical Cable and connectors

• 4 Core and 2 Core shielded cable for best performance and reduced EMI
• EDG 4 pin Connectors included
• 16 AWG for Power Supply to CNC xPRO V5
• 2 core DC Cable for E-Stop

Limit Switch Kits

• 3 x Micro Limit Switch
• 3 x Limit Switch Plate
• 6 x M3 10mm Cap Head Screw
• 3 x M5 8mm Low Profile Screw
• 3 x M5 Drop-in Tee Nut
• NOTE: The holes in the switch will need to be opened a little (3mm drill bit) to allow for the M3 screw or alternatively you can use a M3 tap to cut a thread into the plastic.

E-Stop Switch

• Max Current: 10A
• Max Voltage AC 660V
• Rated Load:
• AC: 220VAC/6A, 380VAC/4A, 660VAC/2A
• DC: 440VDC/0.3A, 220VDC/0.5A, 110VDC/1A
• TYPE: N/C
• Withstand Voltage: 2500V /60S
• Temperature: -25°~+55°
• Contact resistance: <25mΩ​

Resources and Assembly Manuals

For your convenience, the Assembly Manual as well as the resources for making this bundle functional can be found at our resources page: https://github.com/Spark-Concepts/xPro-V5/wiki

Please Note:

For your safety, we recommend to have all high voltage or mains voltage systems be wired in by a licensed electrician.

Make sure to have the power turned off when adjusting your wiring.

Do not disconnect the stepper motors while power is applied.
