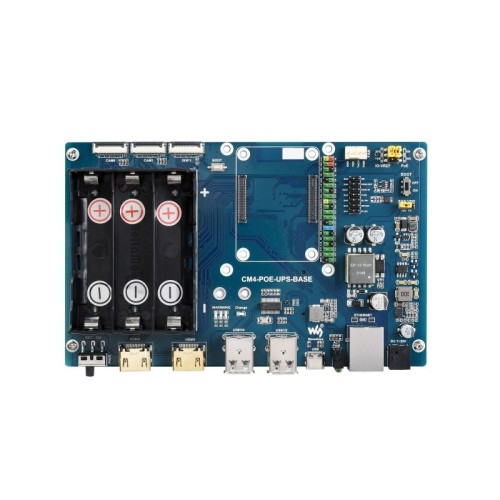

CM4-PoE-UPS Base - expander for CM4 - PoE, Gigabit Ethernet, Dual HDMI, Quad USB2.0 - Waveshare 22116

• Designed for use with CM4
• Enables wireless power supply of the module and additionally three external power supply options: USB, DC and PoE interface
• It has circuits protecting against overcharging/discharging, short circuits and reverses polarity
• Equipped with a Gigabit Ethernet RJ45 connector, integrates a PoE circuit compliant with the 802.3af standard (5 V / 2.5 A)
• Equipped with M.2 KEY slot for connecting NVME SSD or communication module with PCIE M.2 KEY interface
• It can charge the batteries and simultaneously power the system from an external power source
• Automatically switches to battery power in the absence of an external power source, thus ensuring trouble-free and continuous operation of the system
• Built-in CSI and DSI connectors have 22 pins with 0.5 mm pitch, it is recommended to purchase a CSI adapter and DSI adapter for use with the camera and display with 15-pin connectors with 1 mm pitch

• Compatible with Raspberry Pi Compute Module 4
• Built-in battery basket: yes
• 3x 18650 socket for lithium-ion battery (battery not included)
• Equipped with a Gigabit Ethernet RJ45 connector
• integrates PoE circuit compliant with 802.3af standard (5 V / 2.5 A)
• USB interface: 4x USB2.0 type A
• Connectors:
• 40 pin GPIO of the Raspberry Pi
• M.2 KEY slot for connecting NVME SSD or communication module with PCIE M.2 KEY interface
• Display connector: 1x MIPI DSI port (0.5 mm FPC 22 pin connector)
• Camera connector: MIPI CSI-2 2x port (22-pin FPC 0.5 mm)
• Video connector: HDMI 2x, supports 4K 30 fps output
• RTC: built-in real-time clock with a battery socket and Compute Module 4 wake-up option
• Memory: microSD memory card slot for Compute Module 4 Lite (without eMMC)
• Fan connector: 5 V / 12 V with an adjustable speed of rotation
• Operation signaling: LED 2x
• Supply voltage: 7 V to 36 V
• Tile sizes: 175 x 108 mm
