Clock Generator - signal generator - 8kHz-160MHz I2C - Si5351A - STEMMA QT/Qwiic - Adafruit 5640

Brand: Adafruit
Product Code: AN-22384
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
15.40€
Ex Tax: 12.73€

Qty

Clock signal generator from Adafruit, which was based on the SI5351A chip. It has been equipped with a 25 MHz crystal oscillator and has an internal PLL loop, thanks to which it can generate any frequency in the range from 8 kHz to 160 MHz. The module uses the I2C interface to communicate with connected devices. It also has two STEMMA QT / Qwiic connectors that allow connections without soldering the leads. The Clock Generator works with a voltage of 3.3 V and 5 V.

Main features:
  • Generates up to 3 non-integer frequencies ranging from 8 kHz to 160 MHz
  • Highly linear VCXO
  • Low output period jitter 100 ps pp
  • Configurable spread spectrum selectable on each output
  • Supports static phase shift
  • Very low energy consumption
  • Compliant with PCIE Gen 1
  • Supports HCSL
Specification:
  • Built-in chip: Si5351A
  • Supply voltage: 3.0 V to 5.0 V
  • Communication interface: I2C bus
  • Frequency Range: 8 kHz to 160 MHz
  • Crystal oscillator: 25 MHz
  • Number of inputs: three independent
  • Leads:
    • solder pads - goldpin connectors raster 2.54 mm for self-soldering included in the set
    • STEMMA QT/Qwiic connectors
  • Four mounting holes with a diameter of 2 mm
  • Module dimensions: 25.3 x 17.7 x 4.7 mm
  • Weight: 1.7 g
Set includes:
  • Clock Generator - 8kHz-160MHz I2C signal generator - Si5351A

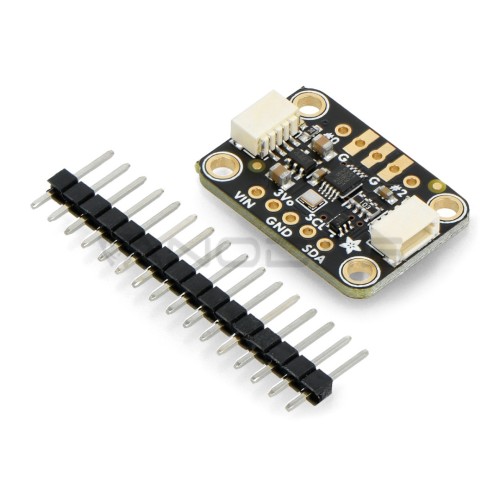

  • Goldpin strip 1x16 pin - raster 2.54 mm
