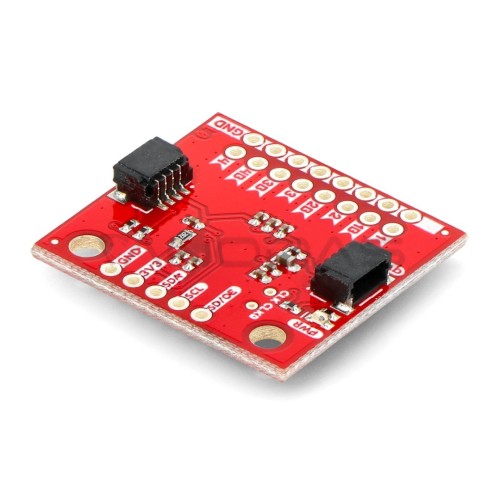

Clock Generator Breakout 5P49V60 - Qwiic - SparkFun BOB-15734
Brand: Sparkfun
Product Code: AN-21295
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-02
Product Code: AN-21295
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-02
Ex Tax: 33.39€
SparkFun module based on the 5P49V60 chip. It enables the generation of a wide range of configurable frequencies of different types of signals using a single reference clock. Four single outputs can generate frequencies from 1 MHz to 200 MHz, and eight differential outputs can generate frequencies from 1 MHz to 350 MHz. The Clock Generator Breakout uses the I2C bus for communication. Two Qwiic connectors on the board facilitate the prototyping process.
Specification:
Specification:
- Operating voltage range: 1.8 V; 2.5 V; 3.3 V (when using the Qwiic connector: 3.3 V)
- Communication: I2C programmable serial interface (with Qwiic support)
- Two I2C addresses to choose from: 0x6A (default) or 0x68
- 4 single-ended outputs for the clock. They can generate frequencies from 1 MHz to 200 MHz on the following signal output: LVCMOS
- 8 differential output clock. They can generate frequencies from 1 MHz to 350 MHz on the following differential outputs: LVDS, LVPECL, HCSL
- Arduino library for frequency control with I2C
- 4 one-time programmable (OTP- One Time Programmable) memory banks
- Programmable switching on the output or Power-Down mode
- Redundant clock inputs with manual switching
- AEC-Q100 Qualification
- Dimensions: 28 x 25 x 5 mm
