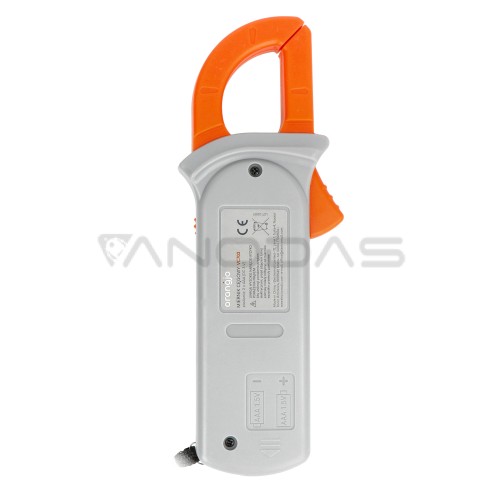

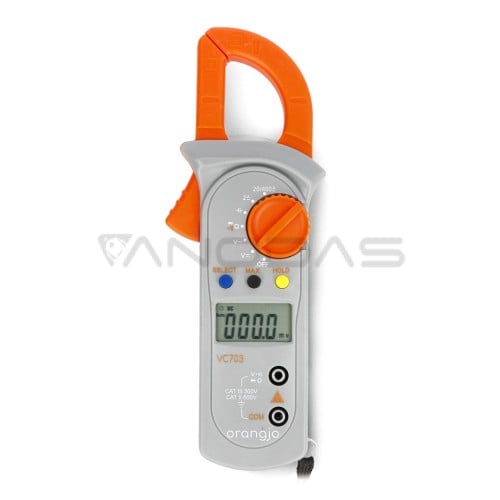

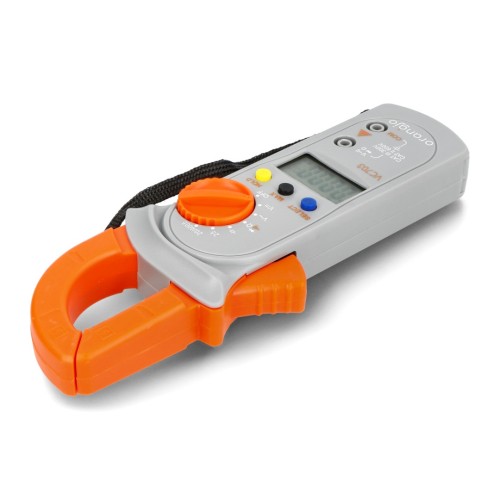

Clamp Meter - Orangjo VC703
Brand: Orangjo
Product Code: AN-22526
Availability: 4-6 business days
Planned delivery date after ordering: 2024-11-22
Product Code: AN-22526
Availability: 4-6 business days
Planned delivery date after ordering: 2024-11-22
Ex Tax: 18.76€
An auto range clamp meter from Orangjo, which allows you to measure DC voltage up to 600 V, AC voltage up to 200 V, AC current up to 400 A, as well as resistance up to 20 MΩ and capacitor capacity up to 4 mF. In addition, it can test diodes and circuit continuity. The device has been equipped with current clamps, thanks to which it can measure the current value without disconnecting the tested system. The meter has a built-in buzzer, a Data Hold function that allows you to save the last displayed measurement, and an automatic polarity detection function. The results of measurements made by the meter are presented on the LCD display. The VC703 is powered by two AAA batteries included in the box and has a low battery indicator. The kit also includes test leads.
Main features:
- Automatic measurement range selection
- Measurement of DC voltage, AC voltage, AC current, resistance and capacitance of capacitors
- Diode and continuity testing
- Current clamps enable the measurement of the current value without the need to disconnect the tested system
- LCD display
- Buzzer
- DataHold function
- Polarity indicator
- Overload protection
- Powered by two AAA batteries included in the set
- Low battery indicator
- Compact housing dimensions
- Easy-to-use
Specification:
- Producer: Orangjo
- Model: VC703
- DC voltage measurement: 200 mV / 2 V / 20 V / 200 V / 600 V
- AC voltage measurement: 200 mV / 2 V / 20 V / 200 V
- AC current measurement: 2 A / 20 A / 200 A / 400 A
- Resistance measurement: 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ
- Capacitance measurement: 4 nF / 40 nF / 400 nF / 4 µF / 40 µF / 400 µF / 4 mF
- Sampling rate: 2 times per second
- Display: LCD
- Power: 2x AAA battery (included)
- Terms of use:
- temperature: from 0 °C to 40 °C
- humidity < 80%
- The storage conditions:
- temperature: -10 °C to 50 °C
- humidity: < 75%
- Weight: 160 g

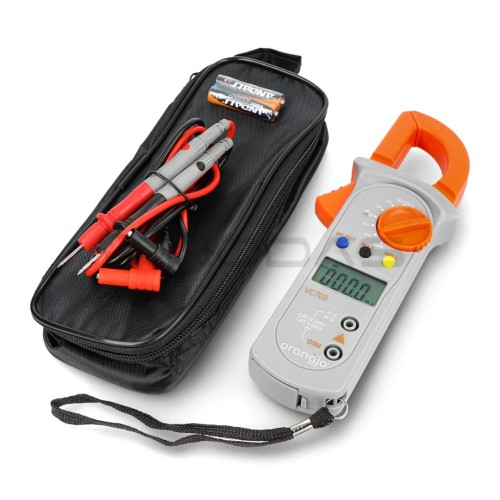

Set includes:
- Clamp meter with auto range Orangjo VC703
- 2 x AAA battery
- Test leads
- Case
- User manual
