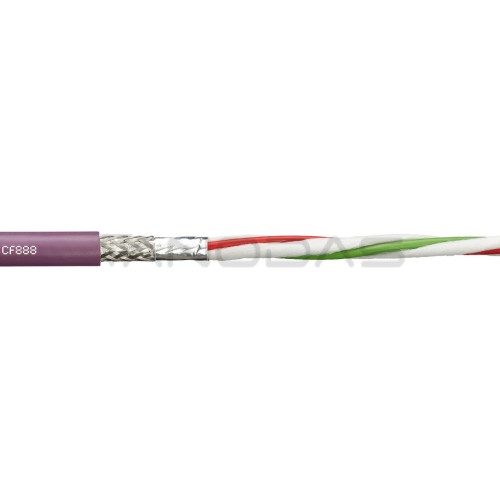

CF888.021 PVC BUS cable

Brand: Igus
Product Code: MX-CF888-021
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-23
5.80€
Ex Tax: 4.79€

Qty

chainflex® CF888 BUS cable

  • Requirements: For flexible connections
  • Outer sheath: PVC
  • Full screen
  • Oil resistance: Not oil resistant
  • Does not spread flame
  • chainflex® class: 3.1.1.1

Typical application areas

  • For flexible connections
  • No oil influence
  • Recommended for indoor use
  • Especially for travel lengths of up to 10 m in self-supporting installations
  • Wood/stone processing machines, packaging industry, sys. power supply, sys. manipulation, regulating devices
Double bending cycles 1 million 3 million 5 million
Temperature, v max [m/s] a. max. Travel path R min. R min. R min.
from/to [°C] self-supporting [m/s2] [m] [factor x diameter] [factor x diameter] [factor x diameter]
+5 / +15 17.5 18.5 19.5
+15 / +60 3 20 ≤ 10 15 16 17
+60 / +70 17.5 18.5 19.5

Approximate cable weight [kg/km]: 73
Number of conductors and nominal cross-section of conductors [mm²]: (2x0.5)C
Outer diameter max: 8.5 mm
Copper index: 24 kg/km
