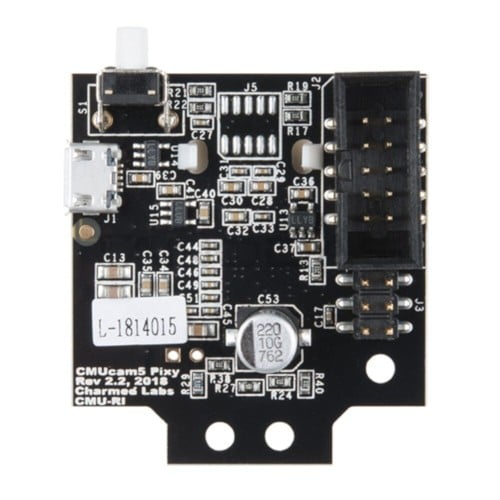

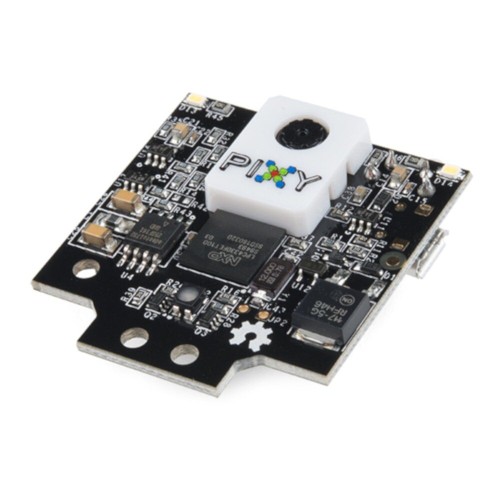

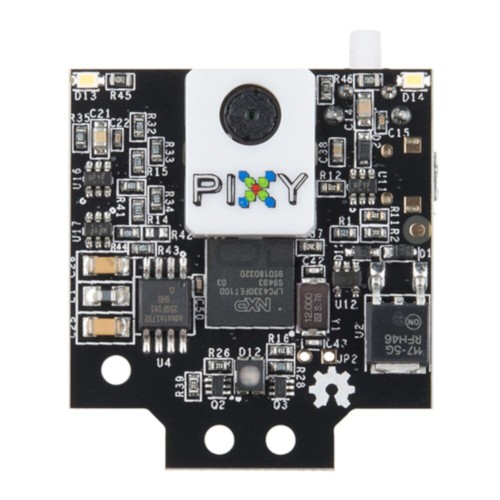

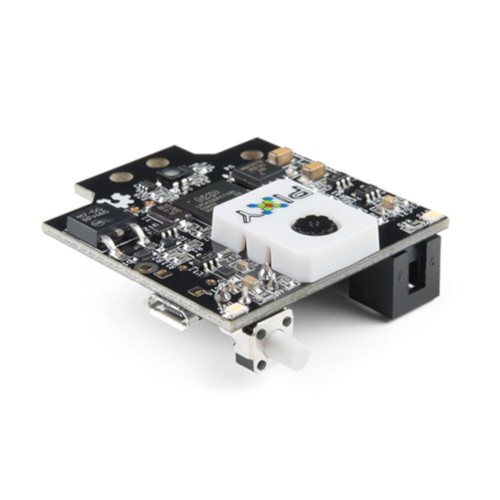

Camera PixyCam v2 CMUcam5, a smart image sensor, SparkFun SEN-14678

Smart image sensor with the integrated processor, through which the robot can actually find items. Pixy has support for different devices, such as Arduino, Raspberry Pi, or BeagleBone. The software is compatible with the ideology of OpenSource, the camera has numerous interfaces, including UART, SPI, I2C, and USB.

Main features:

• Many communication interfaces: UART, SPI, I2C, and USB
• The ability to communicate with popular platforms: Raspberry Pi, Banana Pi, and Arduino
• A speed of 60 frames per second
• The module is small in size and is easy to connect
• PixyCam has built-in image processing systems so the microcontroller of the main board is not loaded with a large number of calculations


Specification:

• CPU: 2-core NXP LPC4330, 204 MHz
• Image sensor: Aptina MT9M114, 1296×976 px
• Viewing angles:
• Horizontal: 60°
• Vertical: 40°
• Current consumption: approx. 140 mA
• Supply voltage:
• USB: 5 V
• Non-adjusted input: 6 V to 10 V
• RAM: 264 KB
• Flash memory: 2 MB
• Communication interfaces:
• UART
• SPI
• I2C
• USB
• Digital
• Analog
• Integrated light source: approx. 20 lumens
• Dimensions: 42 x 38 x 15 mm
• Weight: 10 g


Set includes:

• The ISP cable Arduino

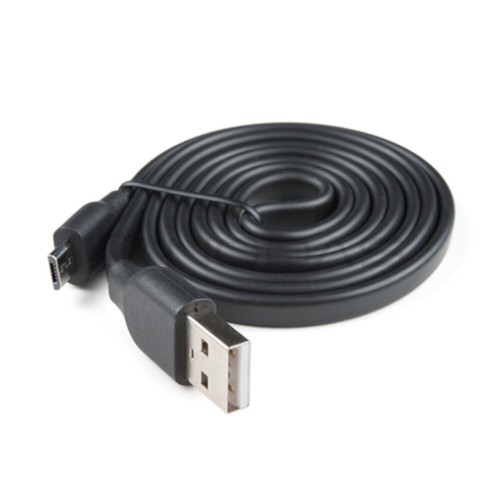

• MicroUSB cable


Useful links:
Website of manufacturer
Manual
