Camera module OV2640 2MPx 1622x1200px 60fps, Waveshare 8532

Brand: Waveshare
Product Code: AN-04937
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
16.30€
Ex Tax: 13.47€

Qty

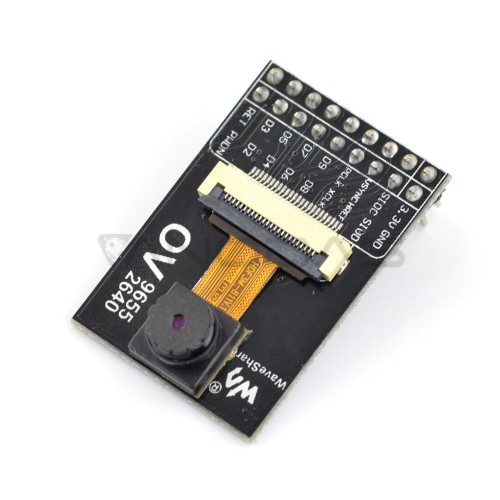

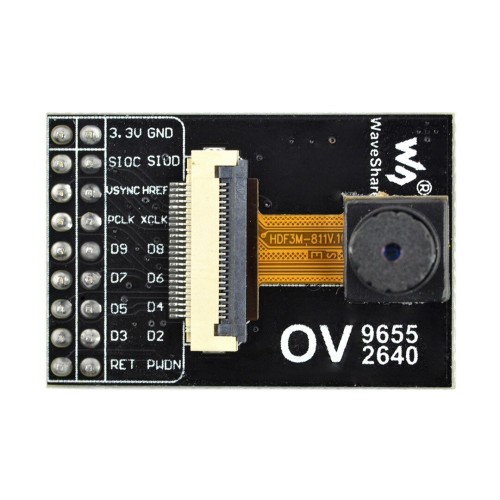

Module with 2 MPx camera with a resolution of 1622x1200px and the frequency of up to 60 frames per second. It extends the capabilities of the microcontroller with the ability to shoot photos and record videos. The device operates with a voltage of 3.3 V, it has a sensitivity of 0.6 V/(lx/s), the angle of view is 25° (non-linear), the lens is 1/4".

Specification:

  • Supply voltage: 3.3 V
  • The operating voltage of the pins: from 1.7 V to 3.3 V
  • Resolution: 1622x1200px (2 MPx)
  • Lens size: 1/4"
  • Sensitivity: 0.6 V/(lx/s)
  • View angle: 25° (non-linear)
  • Output formats:
    • YUV(422/420)/YCnCr422
    • RGB 565/555
    • 8-bit compressed data
  • Maximum speed:
    • UXGA / SXGA: 15 fps / 30 fps
    • VGA: 30 fps
    • CIF: 60 fps
  • Module dimensions: 35 x 24 mm
