Camera HD G camera OV5647 5Mpx, wide-angle, for Raspberry Pi, Waveshare 14037

Brand: Waveshare
Product Code: AN-15130
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
28.09€ 34.90€
Ex Tax: 23.22€

Qty

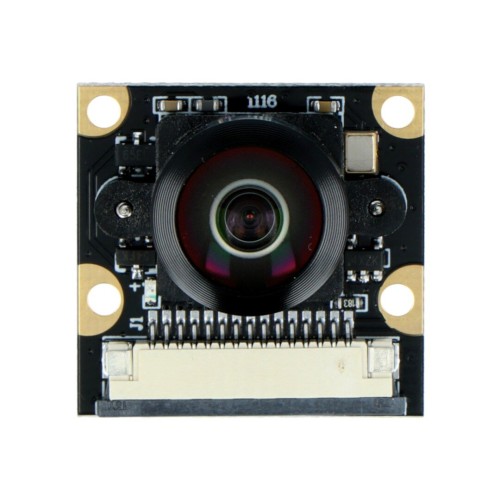

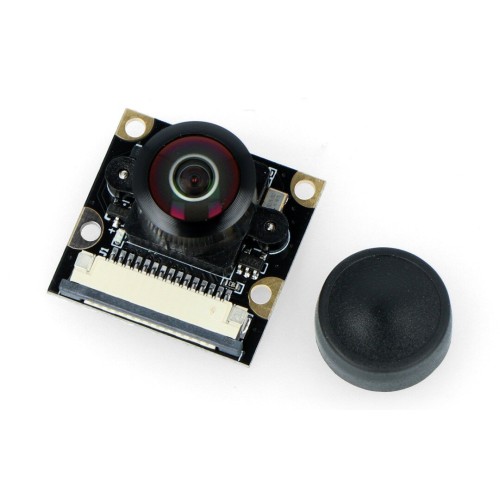

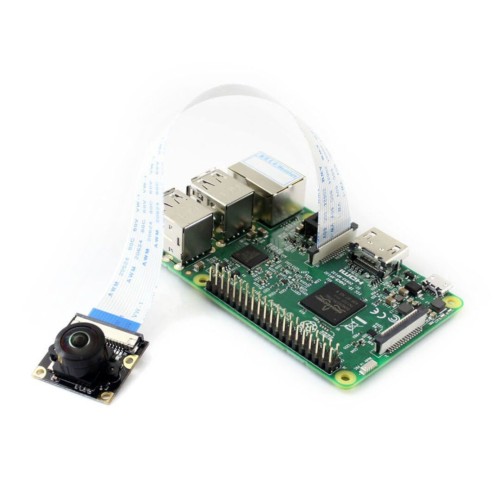

Module with a wide-angle camera (200°) connected to a dedicated minicomputer connector Raspberry Pi version 4B, 3B+, 3B, 2B, B+, A+ and older A and B. The device has a 1/4" CCD sensor with 5 Mpx resolution and supports 1080p HD mode. Raspberry Pi has hardware that supports this camera, so the device does not consume the computing power of the processor.

Specification:

  • Raspberry Pi camera compliant with 4B, 3B+, 3B, 2B, B+, A+ and older A and B versions
  • Matrix: 5 MPx
  • Sensor: OV5647
  • CCD matrix: 1/4"
  • The angle of vision: 200°
  • Focal length: 0.87 mm
  • Adjustable autofocus distance
  • It has 4 mounting holes
  • Output voltage: 3,3 V
  • Supports the connection of an external LED
  • Photo resolution: 2592x1944px
  • Resolution of the video recording:
    • 1080p 30 fps
    • 720p 60 fps
    • 640x480px 60/90 fps
  • Dimensions: 25 x 24 mm

Set includes:

  • 5 MPx camera
  • 16 cm tape for connection to Raspberry Pi
