Camera ArduCam Sony IMX219 8MPx M12 mount, night vision with lens LS-1820, for Raspberry Pi

Brand: ArduCam
Product Code: AN-11723
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
43.36€ 52.70€
Ex Tax: 35.83€

Qty

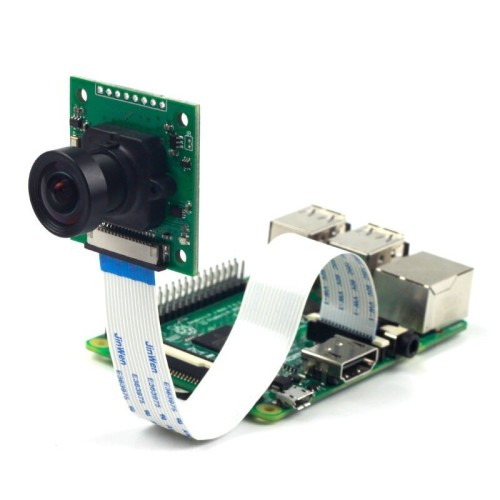

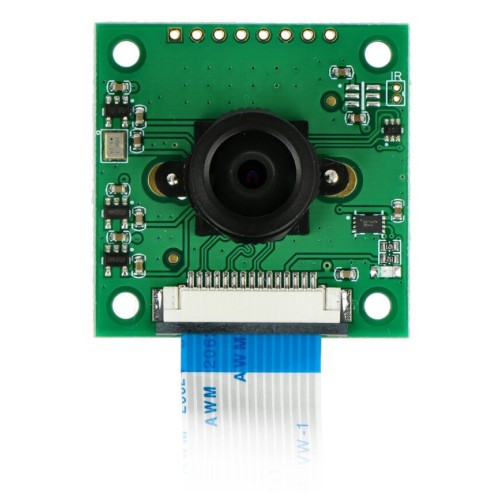

Camera module with sensor Sony IMX219 equipped with a lens LS-1820 - NOIR to work in the day and at night. It connects into a special connector on a minicomputer Raspberry Pi in versions 3, 2, B+, A+, Zero, Zero W. The device has a matrix with a resolution of 8 Mpx, supports HD mode 1080px / 30 fps.

Specification:

  • Camera compatible with Raspberry Pi in versions 3, 2, B+, A+, Zero, Zero W
  • Matrix: 8 MPx
  • CCD: 1/4"
  • Sensor: Sony IMX219
  • Resolution: 3674x2760px (active 3280x2464px)
  • Pixel size: 1,12 x 1,12 m
  • Video: up to 1080p, 30 fps
  • Lens mounting: CS-mount or M12x0.5
  • Lens: LS-1820-NOIR
  • Viewing angle: 100°
  • Board size: 36 x 36 mm
  • IR sensor: sensitivity to IR light

Set includes:

  • Camera Sony IMX219 8 MPx with lens LS-1820-NOIR
  • Tape to connect to the Raspberry Pi

Useful links:
Manufacturer website
Manual
