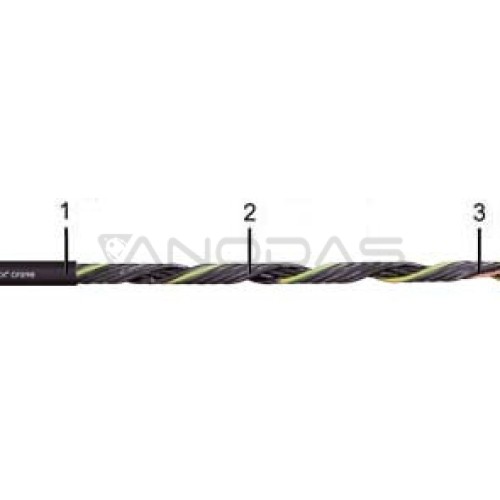

Cable CF890.10.04 - 4 G 1.0

Brand: Igus
Product Code: MX-CF890-10-04
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-16
5.80€
Ex Tax: 4.79€

Qty



Cable CF890.10.04
  • for flexible load requirements
  • iguPUR outer shirt
  • Oil resistant

Chainflex® cable classification:
Class 3.1.3
Load:
3: Chain-suitable cables without special construction (e.g. layer splicing) for use in E-Chain®
Stroke Length:
1: no support
Oil resistance:
3: Oil resistance (according to DIN EN 50363-10-2)

Vein A conductor made of thin braided wires. consisting of bare copper wires (according to EN 60228).
Core insulation TPE mixture
high mechanical quality with extremely low capacitive reactance
Vein twist The veins had a particularly short stroke
Vein marking Black cores with white numbers. one green/yellow core
Outer coat Low-adhesive. Particularly resistant to abrasion
and highly flexurally resistant TPE-based compound suitable for the requirements of E-Chain®.
Color: black (similar to RAL 9005)
Bending radius moved min. 15 xd
fixed min. 10 xd
Temperature shifted -20 °C to +80 °C
rigid -40 °C to +80 °C
v max. unsupported 3 m/s
a max. 20 m/s²
Travel path Slides without support
resistant to UV radiation Mediocre
Nominal voltage 300/500V
Test voltage 2000 V (based on DIN VDE 0281-2)
Oil Oil resistant
No silicone No substances that interfere with painting
(based on PV 3.10.7 – as of 1992).
CE Based on 2006/95/EC
DESINA in accordance with VDW. DESINA standardization
Lead-free Based on EU guidelines (RoHS) 2011/65/EU


Typical use of the cable
  • for flexible load requirements
  • with oil resistance
  • indoor and outdoor applications without direct sunlight
  • Primarily for long travels
  • Machining equipment/machine tools. low temperature applications
