Cable CF884.028 - (2x(2x0.15)+(2x0.38))C

Brand: Igus
Product Code: MX-CF884-028
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-20
9.80€
Ex Tax: 8.10€

Qty



Cable CF884.011
  • for flexible load requirements
  • Outer PVC cover
  • Full screen

Chainflex® cable classification:
Class 3.1.1
Load:
3: Chain-suitable cables without special construction (e.g. layer splicing) for use in E-Chain®
Stroke Length:
1: no support
Oil resistance:
1: not oil resistant

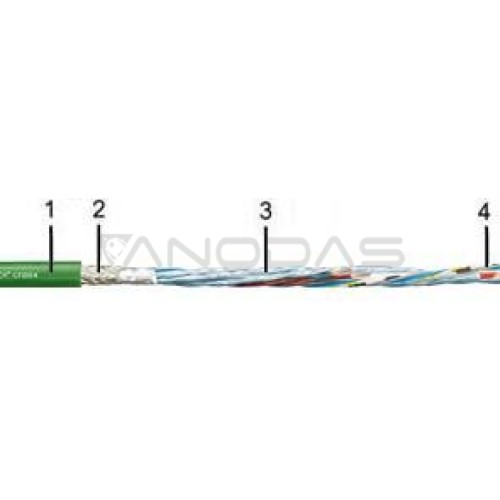

Vein A conductor made of thin braided wires. consisting of bare copper wires (according to EN 60228).
Core insulation TPE mixture with high mechanical quality.
Vein twist in accordance with the measurement system specifications
Vein marking in accordance with the measurement system specifications. see product selection
Item screen Shielding by wrapping with optimized bending-resistant foil.
Optical coverage approx. 100%.
Full screen Weave made of galvanized copper wires
Optical shielding approximately 60%.
Outer coat Low-adhesive. Particularly resistant to abrasion
and highly flexurally resistant PWC-based compound suitable for the requirements of E-Chain® chains.
Color: yellow-green (similar to RAL 6018)
Bending radius moved min. 15 xd
fixed min. 10 xd
Temperature offset +5 °C to +70 °C when used in cable guides at
at > 50,000 jumps
rigid -20 °C to +70 °C
v max. unsupported 3 m/s
a max. 20 m/s²
Travel path Slides without support
resistant to UV radiation Mediocre
Nominal voltage 50V
Test voltage 500V
No silicone No substances that interfere with painting
(based on PV 3.10.7 – as of 1992).
CE Based on 2006/95/EC
Lead-free Based on EU guidelines (RoHS) 2011/65/EU


Typical use of the cable
  • for flexible load requirements
  • without oil action
  • best for indoor applications
  • Primarily for long travels
  • wood and stone processing. packaging industry. delivery van. service. equipment adjustment
