Cable CF270.UL.40.04.D - (4 G 4.0)C
Ex Tax: 25.37€
Cable CF270.UL.40.04.D
- for medium load requirements
- PUR outer jacket
- shielded
- Resistant to oils and coolants
- Tear-resistant
- does not sustain combustion
- resistant to hydrolysis and microorganisms
- PVC and halogen free
Chainflex® cable classification:
Class 4.2.3
Load:
4: Specially constructed cables for continuous movements in energy chains under medium load. radii from 7.5 x diameter. speed up to 3 m/s
Stroke Length:
2: Travels up to 10 and 20 m
Oil resistance:
3: Oil resistance (according to DIN EN 50363-10-2)
| temperature range in motion: | From -20°C to +80°C. bending radius min. 10 xd | |
| Temperature range after installation | From -40°C to +80°C. bending radius min. 5 xd | |
| v max. unsupported | 10 m/s | |
| a max. | 50 m/s2 | |
| Travel path | For unsupported travel. class 1 | |
| resistant to UV radiation | Mediocre | |
| Nominal voltage | 600/1000 V (based on DIN VDE 0250) | |
| Test voltage | 4000 V (based on DIN VDE 0281-2) | |
| Oil | Oil-resistant (based on DIN EN 50363-10-2). class 3 | |
| Offshore | Mud-resistant according to NEK 606 - status: 2009. | |
| does not sustain combustion | Complies with IEC 60332-1-2 standard. CEI 20-35. FT1. VW-1. | |
| No silicone | Free from substances that damage paint coatings (according to PV 3.10.7 - status from 1992). | |
| Halogen free | According to EN 50267-2-1. | |

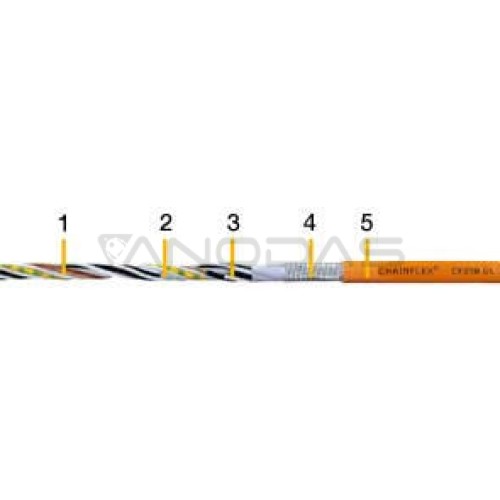

| Vein | twisted conductor resistant to bending. from bare copper conductors (compliant with EN 60228). | |
| Core insulation | TPE mixture | |
| Vein twist | conductors with a pair of signaling elements bolted together with elements providing tensile strength | |
| Vein marking | Power cable: Black cores with white numbers. one green/yellow core 1. Core: U / L1 / C / L+ 2. Core: V/L2 3. Core: W/L3/D/L- 1 control pair: black cores with white numbers 1 control pair: 4 2nd control pair: 5 2 control pairs. shielded: black cores with white numbers | |
| Item screen | resistant to bending. galvanized copper screen Coverage approx. 55% linear. approx. 80% optical. | |
| Intermediate casing | Wrapping the outer layer with foil. | |
| Full screen | resistant to bending. galvanized copper screen Coverage approx. 55% linear. approx. 80% optical. | |
| Outer coat | Low-adhesive PUR-based mixture. suitable for the requirements of E-Chain® (according to DIN VDE 0282 part 10). Color: pastel orange (compared to RAL 2003) | |
| UL/CSA | Style 10989 and 21223. 1000 V. 80°C | |
| NFPA | In accordance with NFPA 79-2012 guidelines. chapter 12.9 (production date 09/2011) | |
| CEI | Based on CEI 20-35 | |
| CE | Based on 2006/95/EC | |
| DESINA | in accordance with VDW. DESINA standardization | |
| Lead-free | In accordance with (RoHS) 2002/95/EG. | |
| Clean rooms | Complies with ISO Class 1. The outer material of the shirt complies with CF27.07.05.02.01.D. IPA tested according to standard 14644-1 | |
| CTP | C-DE certificates. PB49.B.00420 | |
| EAC | TC RU C-DE certificates. ME77.B.01255 |
Typical use of the cable
- for medium load requirements
- Almost unlimited oil resistance
- Use indoors and outdoors without direct sunlight
- Primarily for long travels
- Machining equipment/machine tools. low temperature applications
