C-Back NB-loT communication module - SIM7020G - for M5StickC and M5StickC Plus - M5Stack A113

Brand: M5Stack
Product Code: AN-22450
Availability: Temporarily Out Of Stock
31.30€
Ex Tax: 25.87€

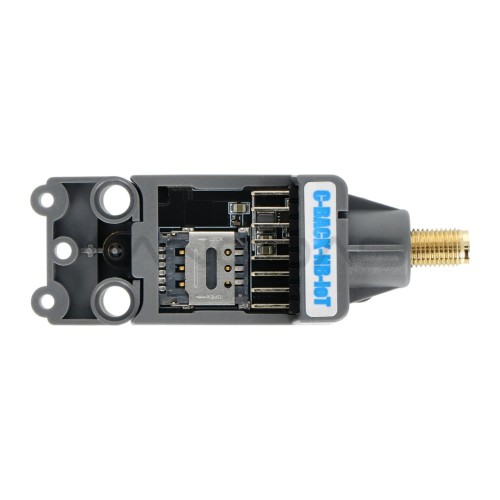

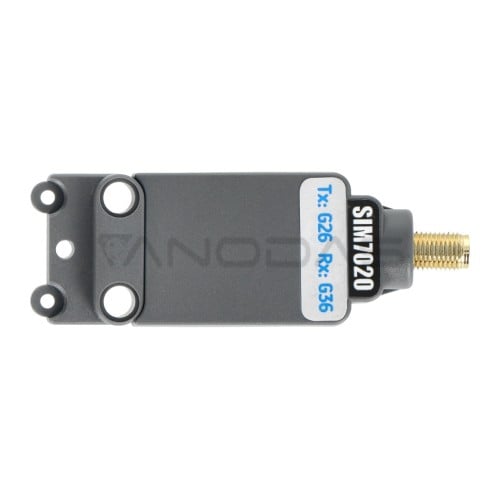

C-Back NB-loT is an NB-IoT communication module adapted to work with M5Stack modules of the M5StickC and M5StickC Plus series. The module is equipped with the SIM7020G chip, which covers most of the global CAT-NB frequency band, and has an integrated interface for connecting an external SMA antenna. C-BACK NB-IoT SIM7020G supports the most popular IoT communication protocols (MQTT, HTTP, CoAP, etc.). It can be programmed with Arduino IDE, UIFlow as well as AT commands.

Main features:
  • Compatible with the M5StickC and M5StickC Plus series
  • Control by AT commands
  • UART communication interface with a speed of 115200 bps
  • Nano SIM card slot

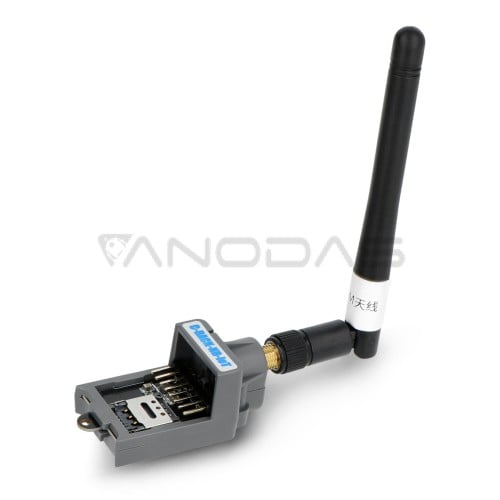

  • The set also includes an external SMA antenna, increasing the range and stabilizing the signal
  • SIM7020G National Telecommunications Certification
Specification:
  • Type: a communication module
  • Built-in chip: SIM7020G
  • Supported CAT-NB bands: B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B66 / B70 / B71 / B85
  • Data rate: 126 (DL) / 150 (UL)
  • Supported protocols: TCP / UDP / LWM2M / COAP / MQTT / HTTP / HTTPS / TLS / DTLS / DNS / NTP / PING / OneNET / telecommunication cloud
  • Communication interface: UART, speed up to 115300 bps
  • Dimensions of the module with the antenna: 170.6 x 24 x 21 mm
  • Weight: 12.2 g
Set includes:
  • Mounting pad - 1 piece
  • External antenna with SMA connector - 1 piece
  • Allen key - 1 piece
  • Screws - 2 pieces
