Buzzer with generator 30mm 3-24V in a case

Product Code: AN-04188
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-18
1.90€
Ex Tax: 1.57€

Qty

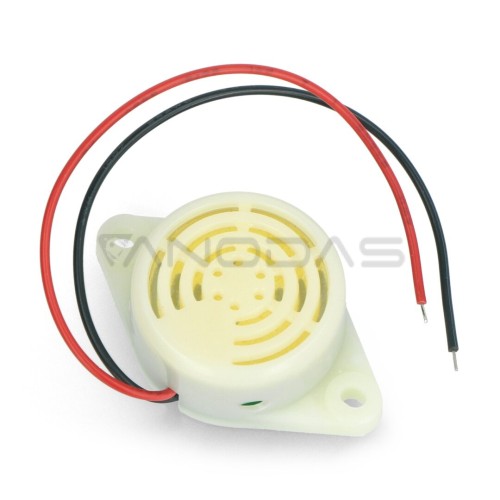

Module with a buzzer with a generator in a case with put-out wires and mounting handles.

Specification:
  • Working voltage: 3 to 24 V DC
  • Resonant frequency: 3.3 kHz ± 0.5 kHz
  • Rated current: 18 mA
  • Sound level: approx. 85 dB
  • Signal type: continuous sound
  • Case diameter: 30 mm
  • Height: 15 mm
  • The distance between the mounting holes: 40 mm
  • Diameter of mounting hole: 2.5 mm
  • Weight: 7 g
