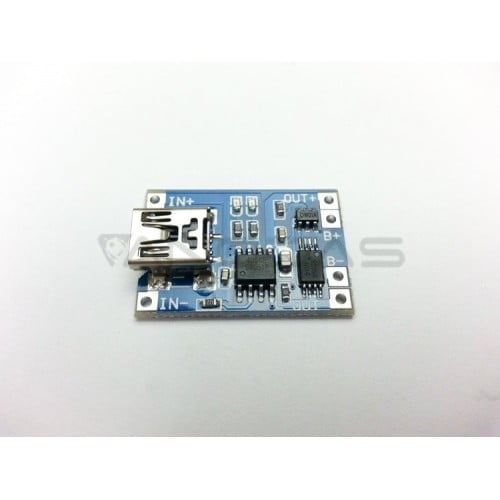

Buffer power supply - MiniUSB 1A charger for Li-Ion, Li-pol - for TP4056

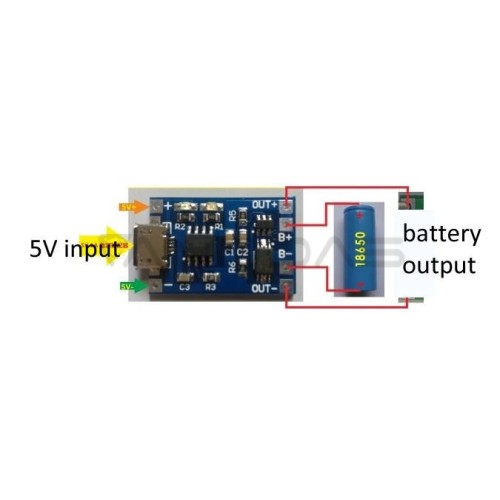

MiniUSB charger with a maximum power of 1 A for lithium-ion batteries. It has the function of working as a buffer power supply. This chip will come in handy when building additional power sources (e.g. a power bank). It has the protection that prevents the charging voltage from exceeding 4.2 V, and also protects against excessive discharge - 2.5 V (under load). It is important because Li-Ion and Li-Pol batteries may be damaged during overcharging and over-discharge. The principle of operation is very simple: by supplying the 5 V INPUT power supply, the module charges the battery pack, and this voltage appears at the output of the OUT+ and OUT- terminals. When the power is disconnected, the module supplies power from the battery, thanks to which the powered receiver will receive current all the time.

Specification:

• Power 4.5-5.5 V (built-in MiniUSB socket for powering the system) or connectors for soldering power 4.5- 5.5 V marked + -
• The voltage on terminals B+ and B- is max. 4.2 V - one cell (1S)
• Charge voltage 4.2 V +/- 1.5%
• Discharge threshold voltage: 2.5 V +/- 1.5%
• Maximum current 1 A - adjustable (R3)
• Red LED charging indication
• LED blue charge indicator
• Dimensions 19 x 25 x 10 mm
• Protection against overcharging and excessive discharge
• Pins B+, B- are used to connect Li-Ion - Li-Pol cells
• Outputs OUT +, - are used to connect the device powered by the cell
