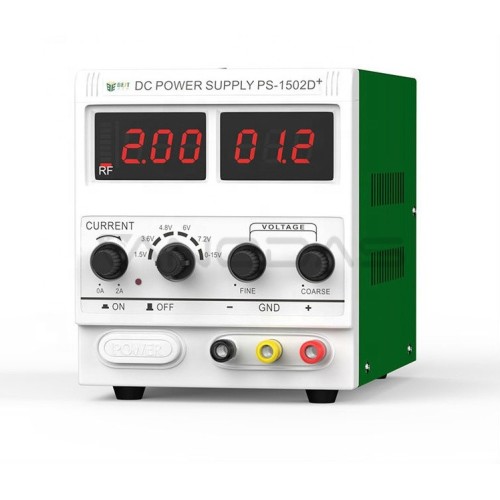

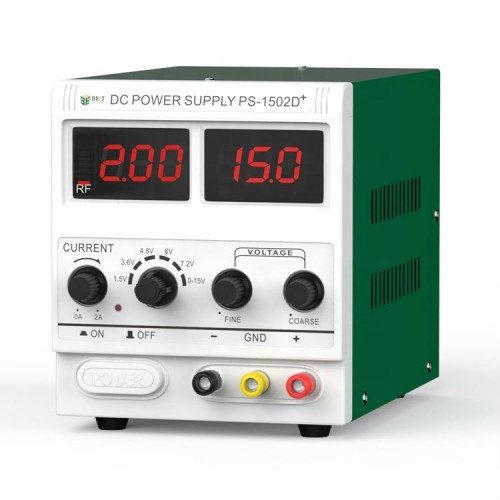

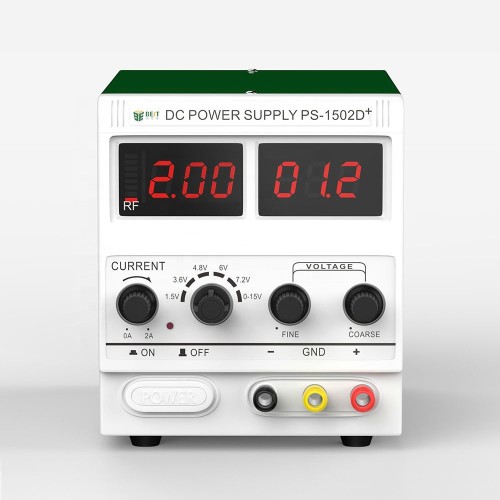

BST PS1520 laboratory power supply 0-15V, 0-2A

Brand: QC - Quality Control
Product Code: MX-IW-ICH-W-CR-BST
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-16
56.70€
Ex Tax: 46.86€

Qty

The BST 1502D power supply allows operation in the entire voltage range of 0-15V DC

In the entire current range 0-2A

It has smooth regulation.

It has five output voltage settings: 1.5V, 3.6V, 4.8V, 6V, 7.2V.

Short circuit and overload protection.

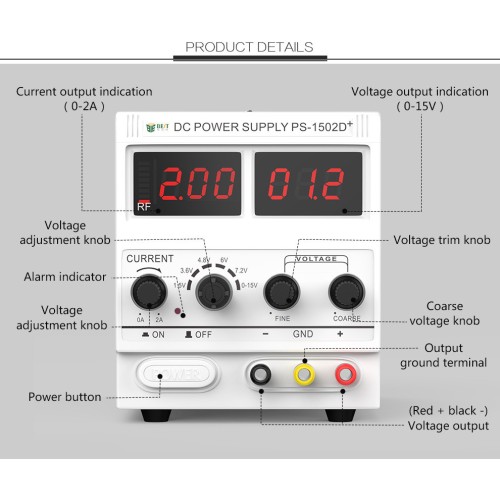

Specification:
  • Input voltage: 230V AC +/-10% 50/60Hz
  • Display: LED current and voltage
  • Output voltage regulation from 0 to 15V
  • Output voltage selectable 1.5V, 3.6V, 4.8V, 6V, 7.2V, 0-15V adjustable
  • voltmeter reading accuracy 0.1V
  • accuracy of ammeter readings 0.01A
  • Knob for coarse and fine tension adjustment
  • Possibility to set the current from 0 to 2A
  • Signaling of exceeded current
  • Short circuit and overload protection

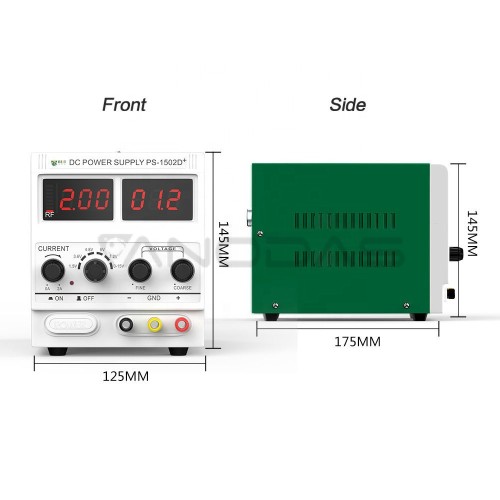

Dimensions: 125mm x 175mm x 145mm
