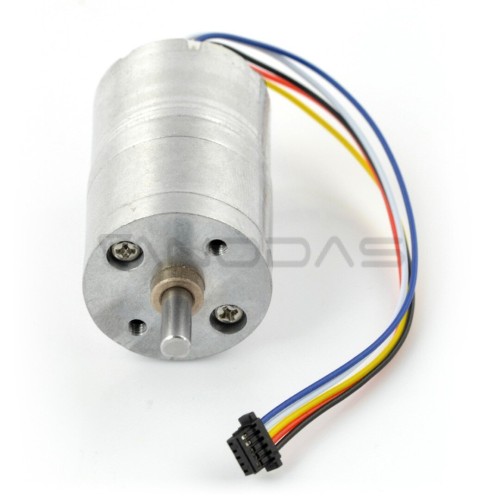

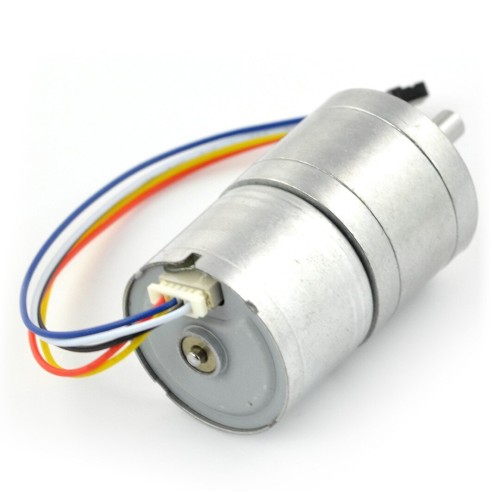

Brushless Motor with Gear 25Dx43L 45:1 with PWM driver + encoder

Brushless motor with 45:1, 159 rpm, 2.4 kg/cm (0.23 Nm) gearing. Device has a built-in controller with PWM and DIR input, so no additional controller is required. Included encoder has a resolution of 270 pulses per revolution.

Specification:

• Power supply voltage: 12 V
• Gearbox: 45:1
• Speed: up to 159 rpm
• Torque: 2.4 kg/cm (0.23 Nm)
• Built-in direction and speed controller
• Encoder resolution: 6 pulses per motor axis revolution (270 pulses after gearbox)
• Connection: 1 mm raster
• Dimensions: 43 x 25 mm
• Shaft diameter: 4 mm (truncated)
• Weight: 70 g


Useful links:
Manufacturer's website
Manual
