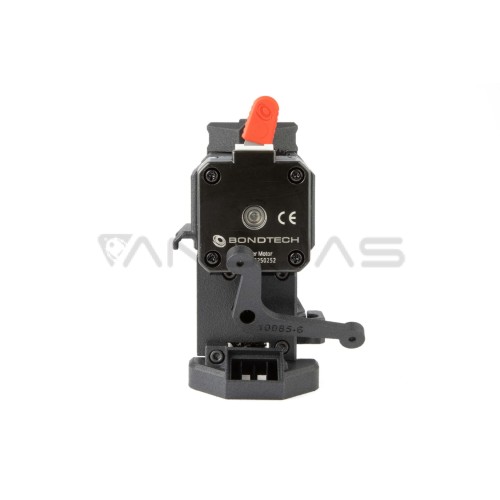

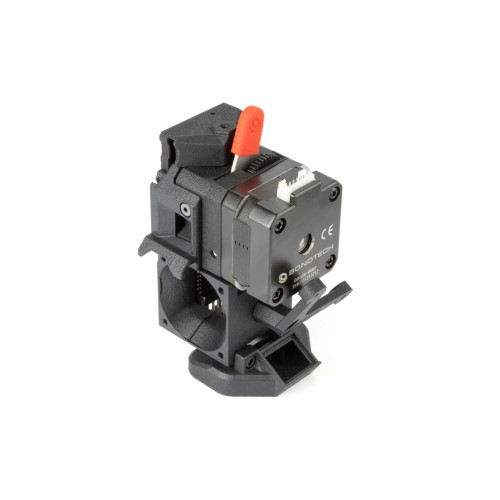

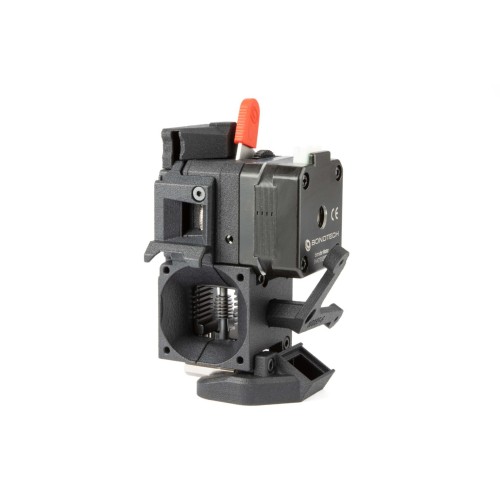

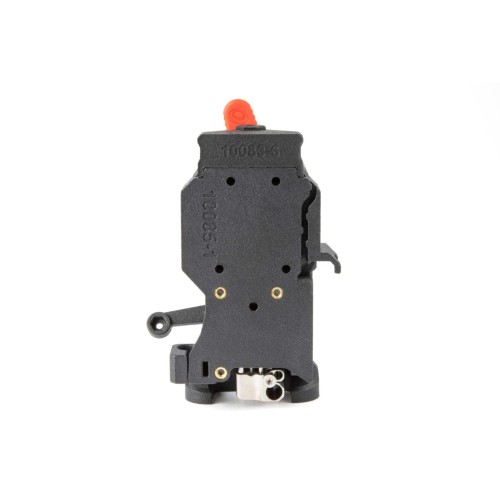

Bondtech LGX for MK3S & Mosquito
Ex Tax: 195.79€
This is an LGX upgrade kit to use on Prusa MK3S and MK3S+. Works only with Mosquito or Mosquito Magnum hotends from Slice Engineering.
A compatible X-carriage and Mosquito hotend are required.
This LGX based upgrade kit is an easy-to-install replacement of the stock direct drive extruder. It requires the accessories included in the LGX Accessories for MK3S & Mosquito package.
Very intuitive and easy to install upgrade kit where the extruder faces the X-carriage reducing the distance between the nozzle and the x-axis.
The LGX is the Bondtech extruder with the highest filament grip due to its new large drive wheels that put more teeth engaging the filament.
This upgrade kit is not compatible with any MMU version.
You need to update your Prusa’s firmware to use this product.
This extruder design is based on Gerd Jentz‘s project posted on GitHub. To his project, we made some small adjustments and added our own filament sensor housing and X-carriage design, compatible with the stock MK3S X-axis.
Start using our newest extruder with our new Dual Drive Technology based on larger drive gears. This is only one of the 7 new features Bondtech implemented on an extruder.
The housing parts are professionally printed with nylon for maximum strength and precision and higher temperature resistance.
Bear in mind the working temperature limit of this upgrade kit will have the following set of limits: due to the stepper motor > up to 80 °C; the PA12 parts themselves can withstand up to 100 °C.
Main features:
A compatible X-carriage and Mosquito hotend are required.
This LGX based upgrade kit is an easy-to-install replacement of the stock direct drive extruder. It requires the accessories included in the LGX Accessories for MK3S & Mosquito package.
Very intuitive and easy to install upgrade kit where the extruder faces the X-carriage reducing the distance between the nozzle and the x-axis.
The LGX is the Bondtech extruder with the highest filament grip due to its new large drive wheels that put more teeth engaging the filament.
This upgrade kit is not compatible with any MMU version.
You need to update your Prusa’s firmware to use this product.
This extruder design is based on Gerd Jentz‘s project posted on GitHub. To his project, we made some small adjustments and added our own filament sensor housing and X-carriage design, compatible with the stock MK3S X-axis.
Start using our newest extruder with our new Dual Drive Technology based on larger drive gears. This is only one of the 7 new features Bondtech implemented on an extruder.
The housing parts are professionally printed with nylon for maximum strength and precision and higher temperature resistance.
Bear in mind the working temperature limit of this upgrade kit will have the following set of limits: due to the stepper motor > up to 80 °C; the PA12 parts themselves can withstand up to 100 °C.
Main features:
- Larger drive wheels, for increased filament grip
- Filament pre-tension lever, for repeated results
- Multi-function interface socket, for tool or application quick swap
- Drive wheels maintenance windows, for easy cleaning
- Compact, light & symmetric design, for increased performance and compatibility
- Multiple mounting hole patterns, for easy and flexible setup
- A small step for a greener Future, craft boxes without bleaching & no coating
- LGX extruder:
- E-steps value: 400 using 16 micro steps
- Drive wheels: hardened steel
- Retraction speed: 35 mm/s
- Retraction distance (direct drive) for rigid materials: 0.4 mm
- Retraction distance (direct drive) for soft materials: 3 mm
- Max. operating temperature: 70 °C
- LGX DD net weight: 218.6 g
- Package measurements: 80 x 103 x 73 mm
- Package Weight: 269 g
- LDO Stepper Motor for Bondtech LGX:
- PH-06AWJ connector
- 2 phases
- DC 5.5 V
- Max 1.0 A/phase
- To use the LGX, run the stepper motor with currents between ~0.45 and ~0.65 A:
- Be vigilant regarding the stepper motor surface temperature
- Keep it cool enough to touch. Lower Vref otherwise
- Class B motor, rated up to 130 °C
- Max. recommended environment: 70 °C
- Max. temperature in this environment can go up to 130 °C on account of the self-heating

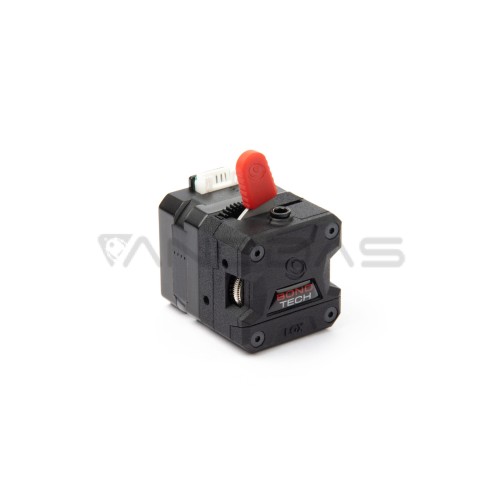

- 1x LGX Large Gears eXtruder:
- 1x LGX feeder
- 1x Custom LDO Nema17 25 mm pancake stepper motor
- 1x Bowden Interface Plug (with threaded metal push-fit)
- 1x Direct Drive Interface Plug (for Slice Engineering hotends)
- 1x 2 mm Hex Key (recommended tool)
- 1x Product Line Information Brochure
- 1x Powered By Bondtech sticker

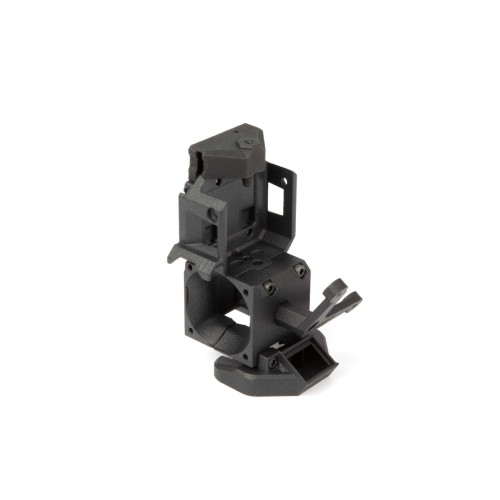

- 1x LGX Accessories for MK3S & Mosquito:
- 1x LGX PA12 Mosquito Base
- 1x LGX PA12 Mosquito Cover
- 1x LGX PA12 Mosquito Fan Shroud
- 1x LGX PA12 Mosquito Fan Holder
- 1x LGX PA12 Prusa Filament Sensor Box
- 1x Motor cable JST-XH6 to Dupont 0.7 mm with lock
- 1x Mounting hardware set
