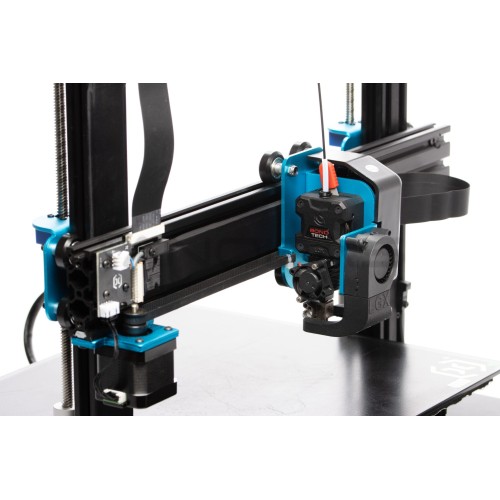

Bondtech LGX DD for Artillery Sidewinder X1 With Mosquito Magnum

Brand: Bondtech
Product Code: PRM-8276
Availability: Temporarily Out Of Stock
423.20€
Ex Tax: 349.75€
This LGX based upgrade kit is an easy-to-install replacement of the stock direct drive extruder. It requires the accessories included in the LGX Accessories For Sidewinder X1 and Mosquito package.
Split the stepper motor from the extruder to install it on your Artillery Sidewinder X1. Place the mounting plate in between them. The extruder is installed facing right, using the included Direct Drive Interface Plug to attach the hotend. Set the E-steps value to 400 using G-code.
The LGX is the Bondtech extruder with the highest filament grip due to its new large drive wheels that put more teeth engaging the filament.
Start using our newest extruder with our new Dual Drive Technology based on larger drive gears. This is only one of the 7 new features Bondtech implemented on an extruder.
The housing parts are professionally printed with nylon for maximum strength and precision and higher temperature resistance.

Main features:
  • Larger drive wheels, for increased filament grip
  • Filament pre-tension lever, for repeated results
  • Multi-function interface socket, for tool or application quick swap
  • Drive wheels maintenance windows, for easy cleaning
  • Compact, light & symmetric design, for increased performance and compatibility
  • Multiple mounting hole patterns, for easy and flexible setup
  • A small step for a greener Future, craft boxes without bleaching & no coating
Specification:
  • LGX extruder:
    • E-steps value: 400
    • Drive wheels: hardened steel
    • Retraction speed: 35 mm/s
    • Retraction distance (direct drive) for rigid materials: 0.4 mm
    • Retraction distance (direct drive) for soft materials: 3 mm
    • Max. operating temperature: 80 °C
    • LGX DD net weight: 218.6 g
    • Package measurements: 80 x 103 x 73 mm
    • Package Weight: 269 g
  • LDO Stepper Motor for Bondtech LGX:
    • PH-06AWJ connector
    • 2 phases
    • DC 5.5 V
    • Max. 1.0 A/phase
Set includes:
  • 1x LGX Large Gears eXtruder:
    • 1x LGX feeder
    • 1x Custom LDO Nema17 25 mm pancake stepper motor
    • 1x Bowden Interface Plug (with threaded metal push-fit)
    • 1x Direct Drive Interface Plug (for Slice Engineering hotends)
    • 1x 2 mm Hex Key (recommended tool)
    • 1x Product Line Information Brochure
    • 1x Powered By Bondtech sticker
  • 1x LGX Accessories For Sidewinder X1 and Mosquito:
    • 1x LGX PA12 Fan Shroud for Mosquito
    • 1x LGX PA12 Z-axis end switch adapter
    • 2x M2.5 × 10 button head screw
  • 1x Mosquito Magnum
  • 1x Copperhead Standard Heat Break
  • 1x Mosquito 24 V fan with XHP-2 Plug
  • 1x Bondtech Coated Nozzle M6 × 1 × 7.5 × 12.5 1.75
