Bondtech CHT BiMetal MK8 Coated Nozzle - 4 pcs

Brand: Bondtech
Product Code: PRM-10582
Availability: 4-7 business days
Planuojama gavimo data po užsakymo: 2025-04-10
205.40€
Ex Tax: 169.75€

Qty

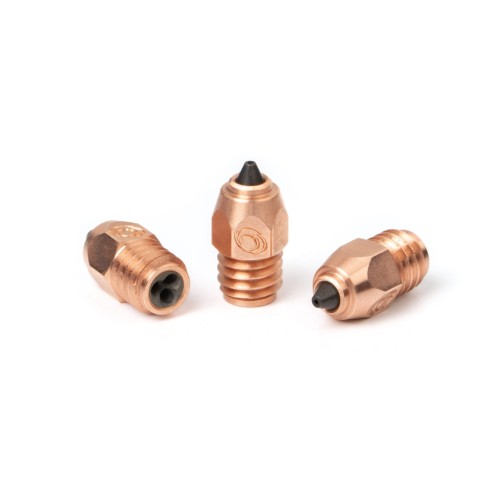

Copper and Hardened Vanadium Steel nozzle for high-flow applications with abrasive materials. Increase the Max. Volumetric Flow of your MK8 style heat block by 50%. The nozzle is supplied with Nickel Coating (grey color).

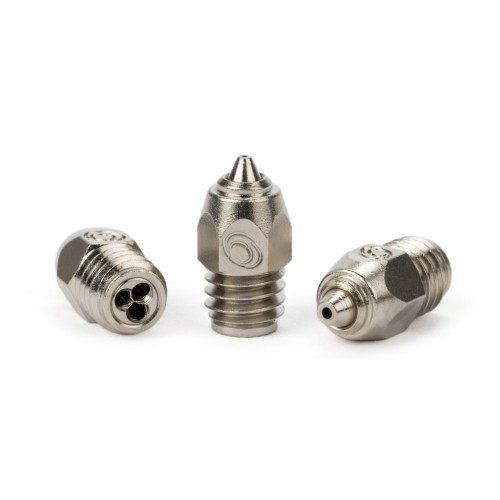

Bondtech CHT nozzles split the filament into 3 thinner strands allowing it to melt the material from within. In doing so, the material melts faster and higher flow rates can be used.
Nozzles for 3D printers made of metal with at least one or a multitude of holes increase the surface area of the heating walls.

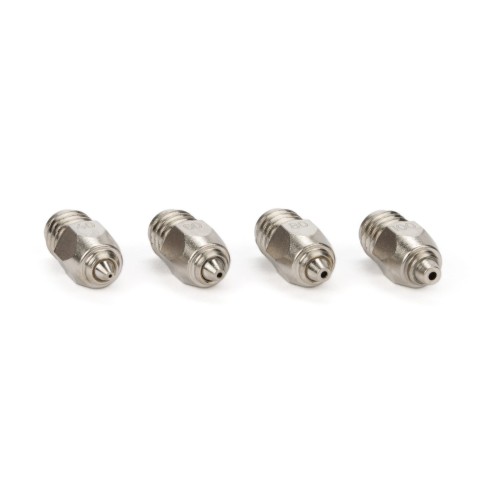

A Nickel coating is applied to our Coated Brass nozzles to provide protection against corrosion, erosion, and abrasion. Nickel-coated nozzles have more corrosion resistance and a lower coefficient of friction, which allows the slicker feeding of material and delays plastic adhesion to the nozzle's surface.

Main features:

  • Abrasive-proof to work with Carbon and Glass fiber composite materials
  • Higher melt capacity by increasing the surface area of the heating walls
  • Flow Rate gains between 25 and 65%
  • Competitive price/performance price
  • Machined with ultra-precision
  • Copper body and Hardened Vanadium Steel insert nozzle with Nickel coated surface

Specification:

  • Copper body
  • Hardened Vanadium Steel inserts
  • Nickel Coating
  • Available sizes: 0.40, 0.60, 0.80, and 1.0 mm
  • Optimized for 1.75 mm filament
  • Compatible with 2.85 mm filament
  • Requires 6mm wrench
